Week 2: Linear regression

PLS 206 — the code behind the lectures

One page for the whole week. It follows the slides (Week2_Linear_Regression.pptx) in order, and has the code behind every figure and number in the lecture, with the output underneath.

To run it yourself, download either version and open it in RStudio. It reads the data straight from the course website, so there is no file to download and no working directory to set:

• Week2_Linear_Regression.R: the plain script. Each block is tagged [CORE], [HANDY], or [DEMO] in a comment.
• Week2_Linear_Regression.qmd: this page as a Quarto notebook (open in RStudio, run chunk by chunk, or click Render).

Every block of code on this page carries one of three labels:

• Core The analysis. Code you would run on your own data: fit the model, read the output, check the diagnostics, report it. Start here for the problem sets.
• Handy Useful, not essential. Wrangling, plotting, and small helpers that make the core easier. Worth knowing; skip on a first read.
• Demo For the lecture only. Simulated data, sums done by hand, and the code behind slide figures. It shows why the core works. Folded: click to open.

# install.packages(c("ggplot2", "car", "scatterplot3d"))
library(ggplot2)

Part A. Fitting a line

1) The data: 40 wheat plants

wheat <- read.csv("https://greymonroe.github.io/PLS_206/data/wheat_plants.csv")
head(wheat)

  plant water nitrogen height biomass
1     1    45       89   86.9    18.1
2     2    41        6   71.6    15.5
3     3    21       66   73.1    14.8
4     4    31       70   75.9    15.6
5     5    49      115   91.0    21.6
6     6    49       65   94.4    17.2

nrow(wheat)

[1] 40

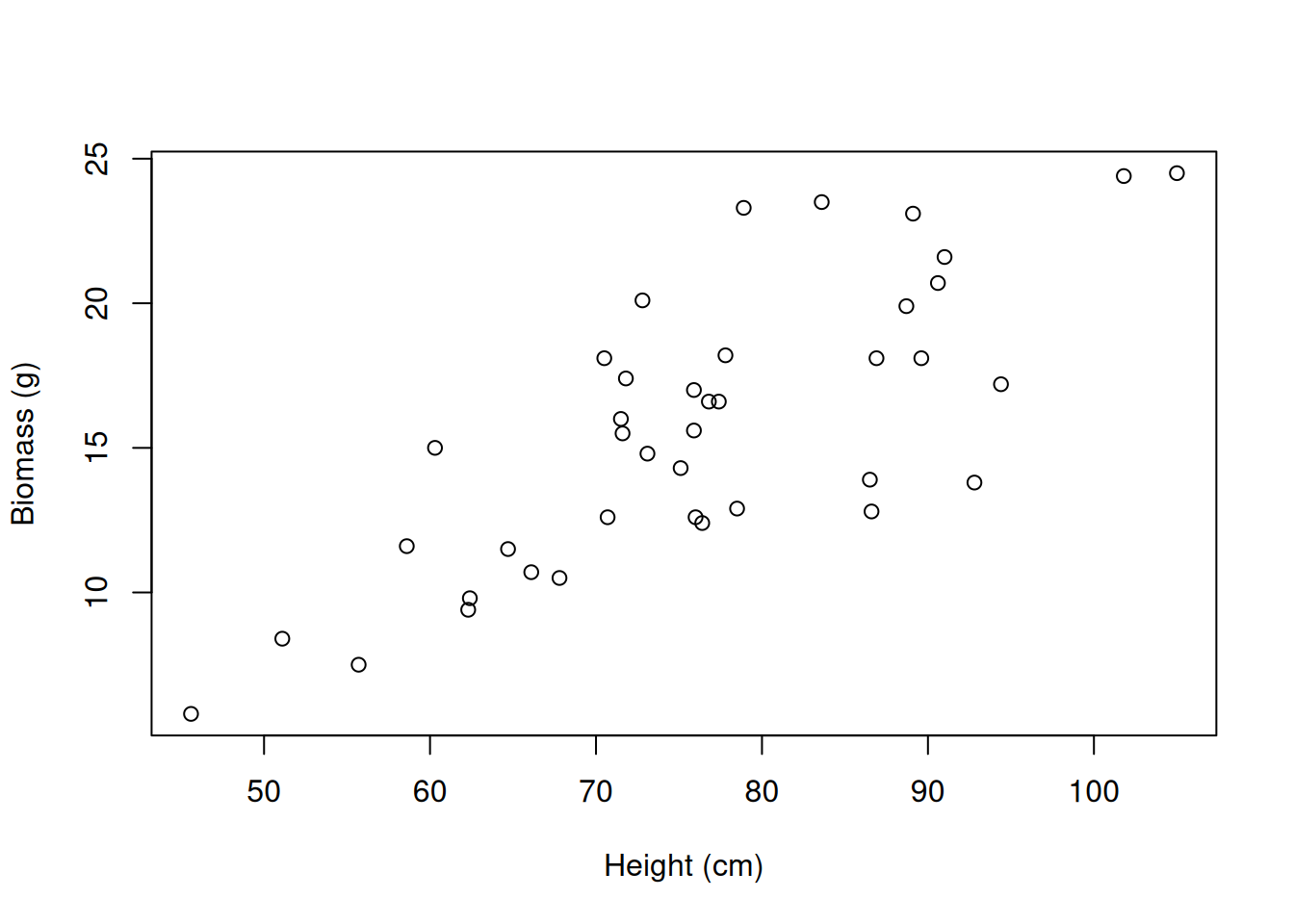

Always plot first.

plot(wheat$height, wheat$biomass, xlab = "Height (cm)", ylab = "Biomass (g)")

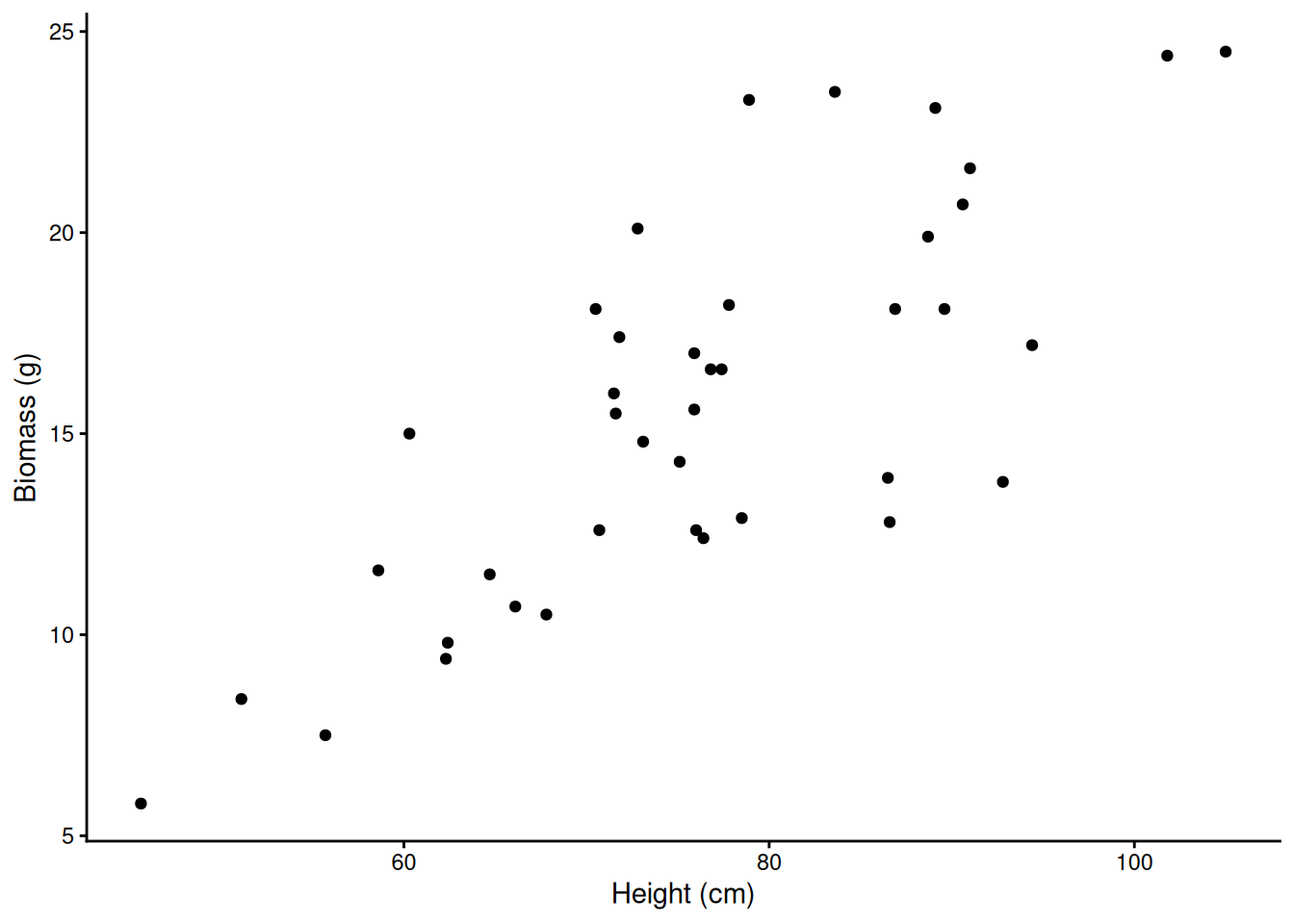

ggplot(wheat, aes(height, biomass)) +
  geom_point() +
  labs(x = "Height (cm)", y = "Biomass (g)") +
  theme_classic()

2) Scoring a line: residuals and the sum of squares

Any line through the middle of the data: biomass = b0 + slope * height. Score each candidate line by its residual sum of squares (RSS). lm() does all of this for you in section 4.

# score a line through the middle of the data by its RSS
model_line <- function(slope) {
  b0 <- mean(wheat$biomass) - slope * mean(wheat$height)
  predicted <- b0 + slope * wheat$height
  sum((wheat$biomass - predicted)^2)
}
model_line(0.12)    # line A

[1] 533.4545

model_line(0.279)   # line B

[1] 361.2284

model_line(0.45)    # line C

[1] 560.0627

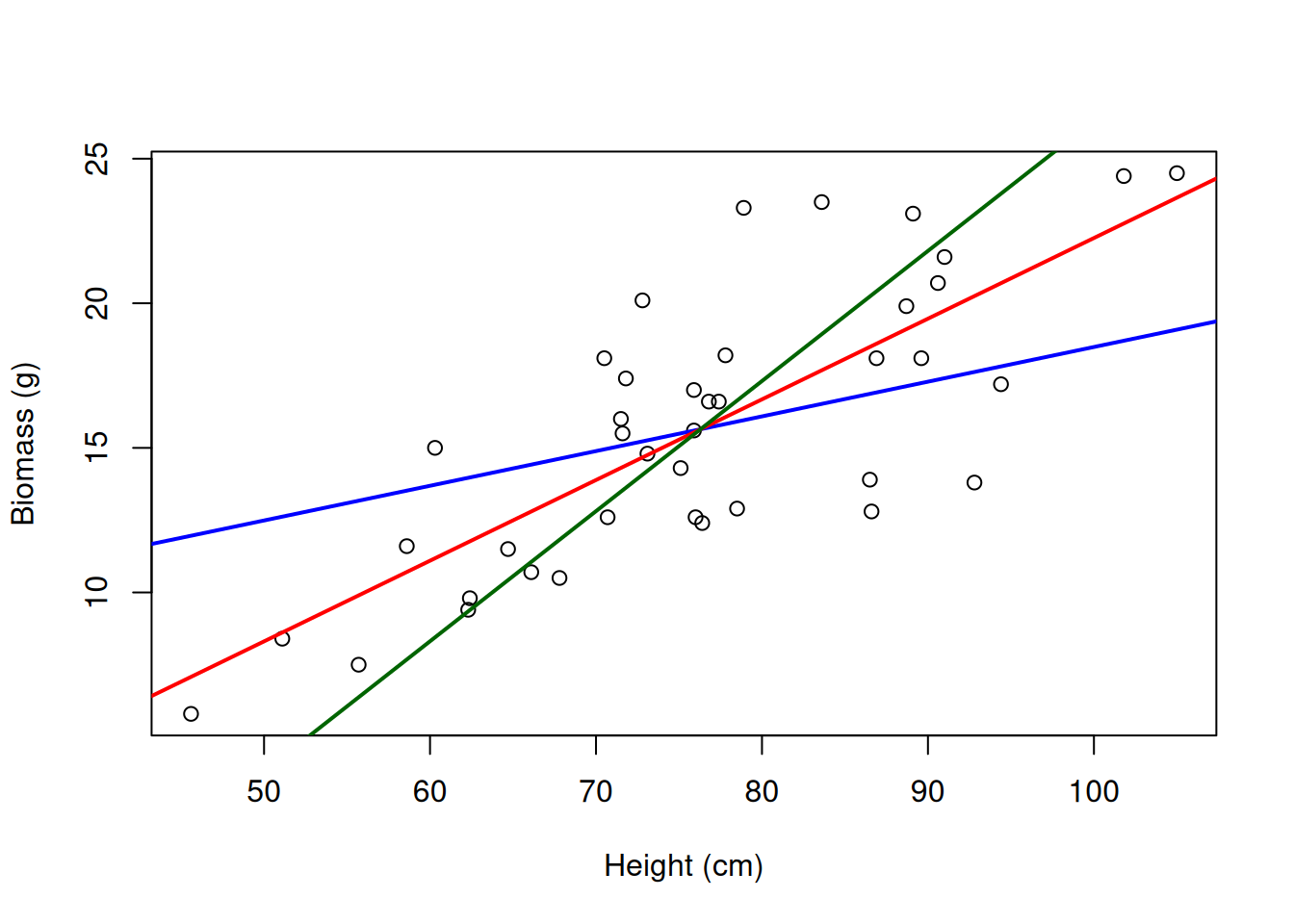

# the three candidate lines on the plot (all through the middle of the data)
plot(wheat$height, wheat$biomass, xlab = "Height (cm)", ylab = "Biomass (g)")
for (slope in c(0.12, 0.279, 0.45)) {
  b0 <- mean(wheat$biomass) - slope * mean(wheat$height)
  abline(b0, slope, col = c("blue", "red", "darkgreen")[match(slope, c(0.12, 0.279, 0.45))], lwd = 2)
}

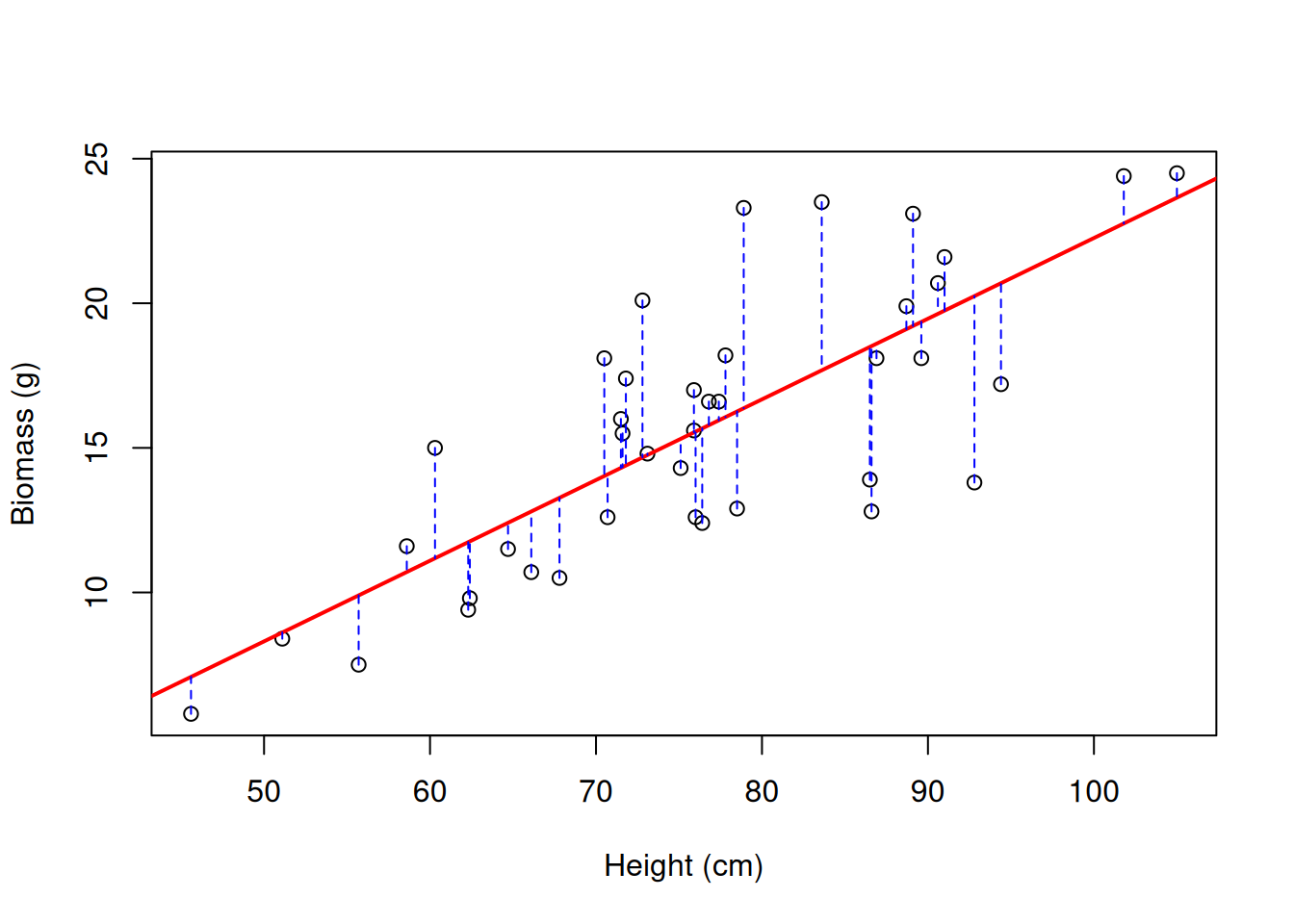

# residuals: the vertical distance from each point to line B
b0 <- mean(wheat$biomass) - 0.279 * mean(wheat$height)
predicted <- b0 + 0.279 * wheat$height
residual  <- wheat$biomass - predicted
plot(wheat$height, wheat$biomass, xlab = "Height (cm)", ylab = "Biomass (g)")
abline(b0, 0.279, col = "red", lwd = 2)
segments(wheat$height, wheat$biomass, wheat$height, predicted, col = "blue", lty = 2)

sum(residual)       # they cancel out...

[1] 8.082424e-14

sum(residual^2)     # ...so we square them: the residual sum of squares

[1] 361.2284

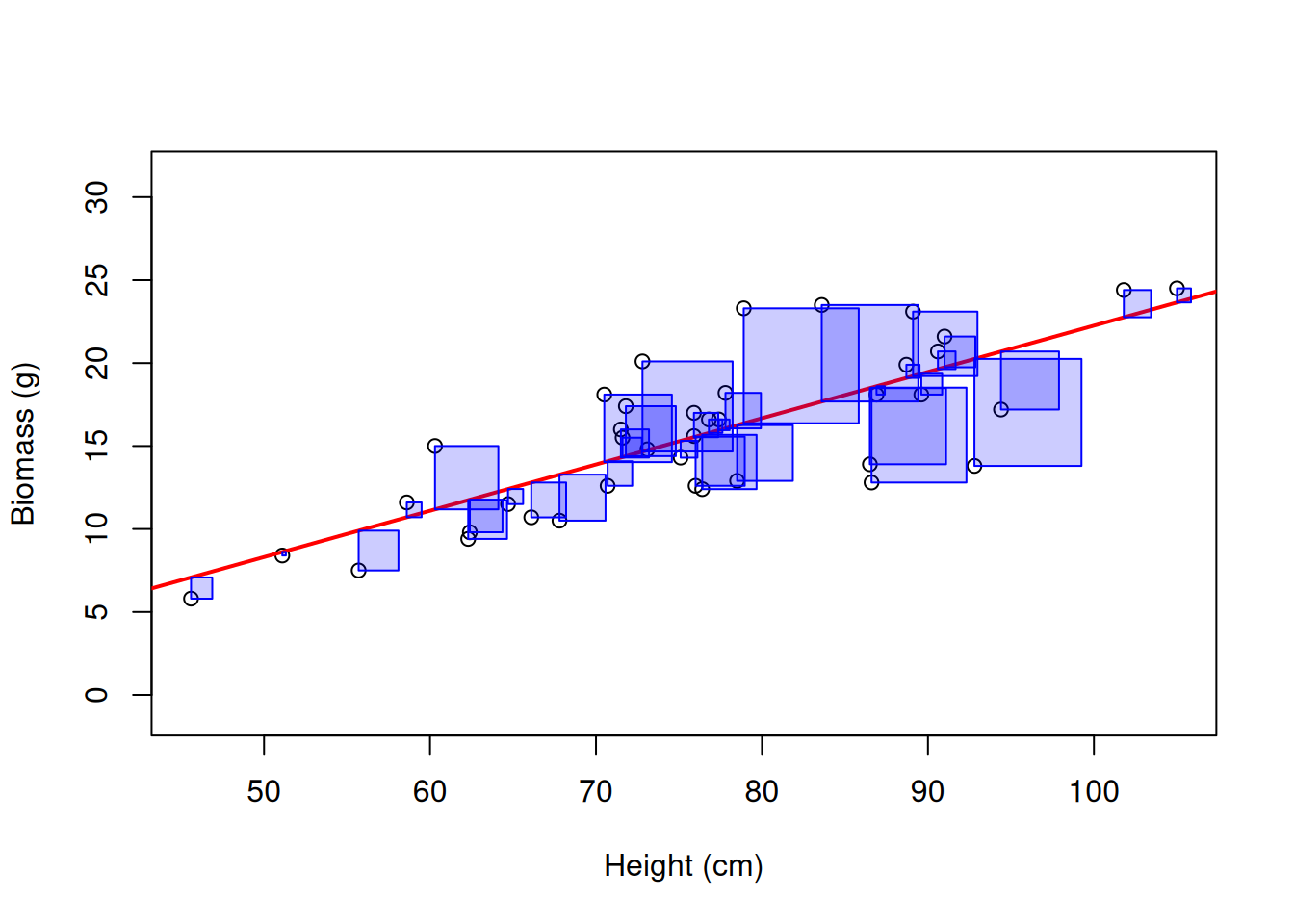

# squares whose side is the residual: the RSS is their total area
plot(wheat$height, wheat$biomass, xlab = "Height (cm)", ylab = "Biomass (g)", asp = 1)
abline(b0, 0.279, col = "red", lwd = 2)
rect(wheat$height, pmin(wheat$biomass, predicted), wheat$height + abs(residual),
     pmax(wheat$biomass, predicted), col = adjustcolor("blue", 0.2), border = "blue")

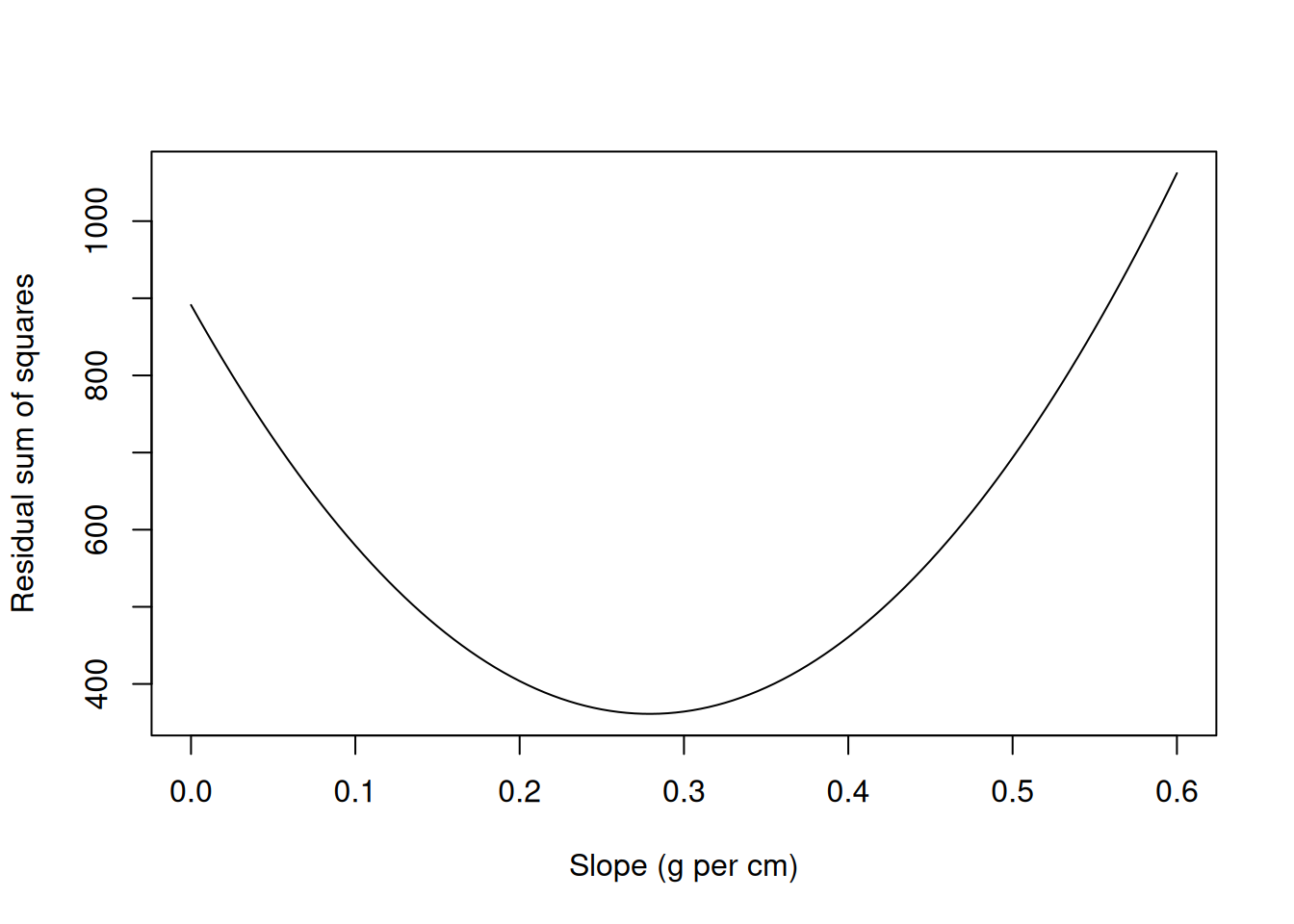

# the RSS for every slope from 0 to 0.6: a bowl with its bottom at 0.279
slopes <- seq(0, 0.6, by = 0.005)
rss <- sapply(slopes, model_line)
plot(slopes, rss, type = "l", xlab = "Slope (g per cm)", ylab = "Residual sum of squares")

slopes[which.min(rss)]

[1] 0.28

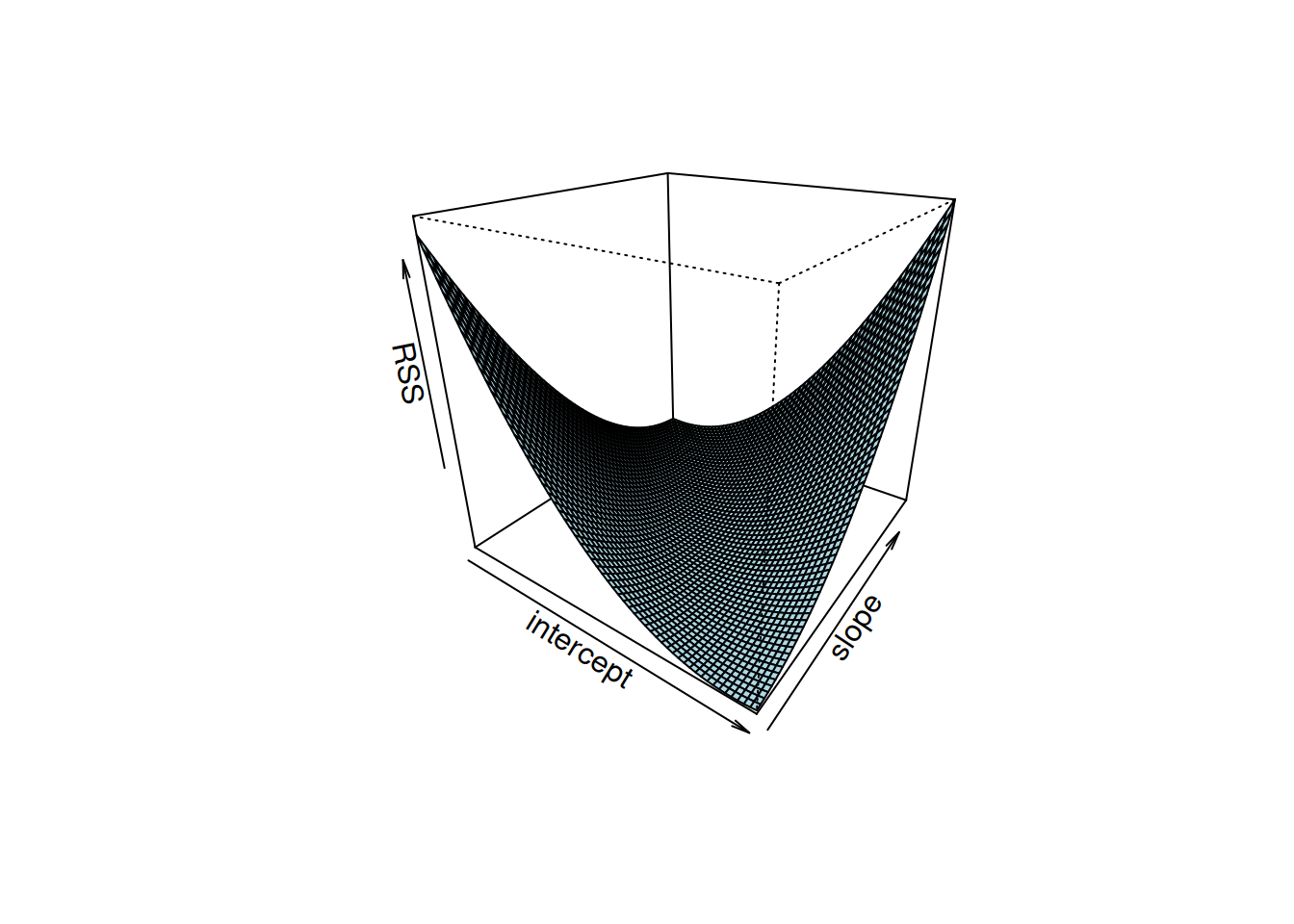

# both knobs at once: the RSS over intercept and slope is a bowl
rss2 <- function(b0, b1) sum((wheat$biomass - (b0 + b1 * wheat$height))^2)
b0s <- seq(-20, 10, length.out = 60); b1s <- seq(0.1, 0.45, length.out = 60)
bowl <- outer(b0s, b1s, Vectorize(rss2))
persp(b0s, b1s, bowl, theta = 35, phi = 25, xlab = "intercept", ylab = "slope", zlab = "RSS", col = "lightblue")

# the bottom of the bowl:
c(b0s[which(bowl == min(bowl), arr.ind = TRUE)[1]], b1s[which(bowl == min(bowl), arr.ind = TRUE)[2]])

[1] -5.2542373  0.2720339

3) The least-squares slope and intercept by hand

# slope
b1 <- cov(wheat$height, wheat$biomass) / var(wheat$height)
b1

[1] 0.2790764

# intercept
b0 <- mean(wheat$biomass) - b1 * mean(wheat$height)
b0

[1] -5.647833

# the same slope, via r
r <- cor(wheat$height, wheat$biomass)
r * sd(wheat$biomass) / sd(wheat$height)

[1] 0.2790764

4) lm(): the same line

# lm(response ~ predictor, data = data.frame)
model <- lm(biomass ~ height, data = wheat)
model

Call:
lm(formula = biomass ~ height, data = wheat)

Coefficients:
(Intercept)       height
    -5.6478       0.2791

coef(model)

(Intercept)      height
 -5.6478330   0.2790764

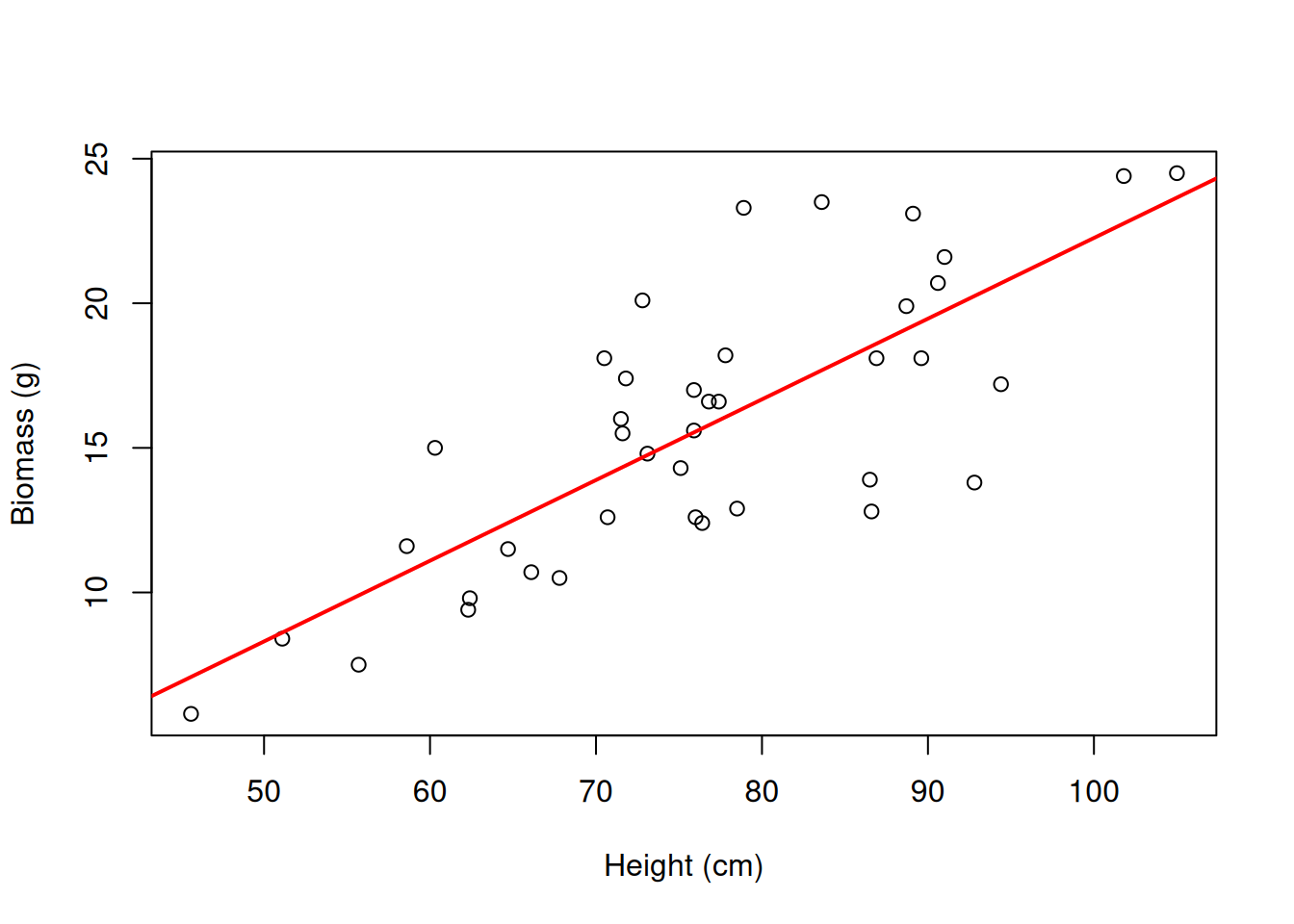

plot(wheat$height, wheat$biomass, xlab = "Height (cm)", ylab = "Biomass (g)")
abline(model, col = "red", lwd = 2)

5) Predictions

predict(model, newdata = data.frame(height = 100))

       1
22.25981

-5.65 + 0.279 * 100     # the same thing from the equation

[1] 22.25

new <- data.frame(height = c(60, 80, 100))
predict(model, newdata = new)

       1        2        3
11.09675 16.67828 22.25981

# fitted values and residuals for our own 40 plants
wheat$predicted <- predict(model)   # fitted values
wheat$residual  <- resid(model)
head(wheat[, c("height", "biomass", "predicted", "residual")])

  height biomass predicted    residual
1   86.9    18.1  18.60391 -0.50390773
2   71.6    15.5  14.33404  1.16596148
3   73.1    14.8  14.75265  0.04734685
4   75.9    15.6  15.53407  0.06593288
5   91.0    21.6  19.74812  1.85187896
6   94.4    17.2  20.69698 -3.49698087

# observed = predicted + residual
head(wheat$predicted + wheat$residual)

[1] 18.1 15.5 14.8 15.6 21.6 17.2

head(wheat$biomass)

[1] 18.1 15.5 14.8 15.6 21.6 17.2

sum(wheat$residual)        # residuals sum to zero (up to rounding)

[1] 2.629841e-15

# interpolate, don't extrapolate: predict() will answer anything
predict(model, newdata = data.frame(height = c(0, 200)))   # nonsense plants

        1         2
-5.647833 50.167451

range(wheat$height)                                        # where the data are

[1]  45.6 105.0

5b) The line is a conditional mean

At each height, biomass is a distribution: mean on the line, spread sigma.

sigma(model)                        # residual standard error: the typical miss

[1] 3.083182

mu <- predict(model, data.frame(height = c(60, 80, 100)))
cbind(height = c(60, 80, 100), mean = mu, low = mu - 2 * sigma(model), high = mu + 2 * sigma(model))

  height     mean       low     high
1     60 11.09675  4.930389 17.26312
2     80 16.67828 10.511917 22.84464
3    100 22.25981 16.093445 28.42617

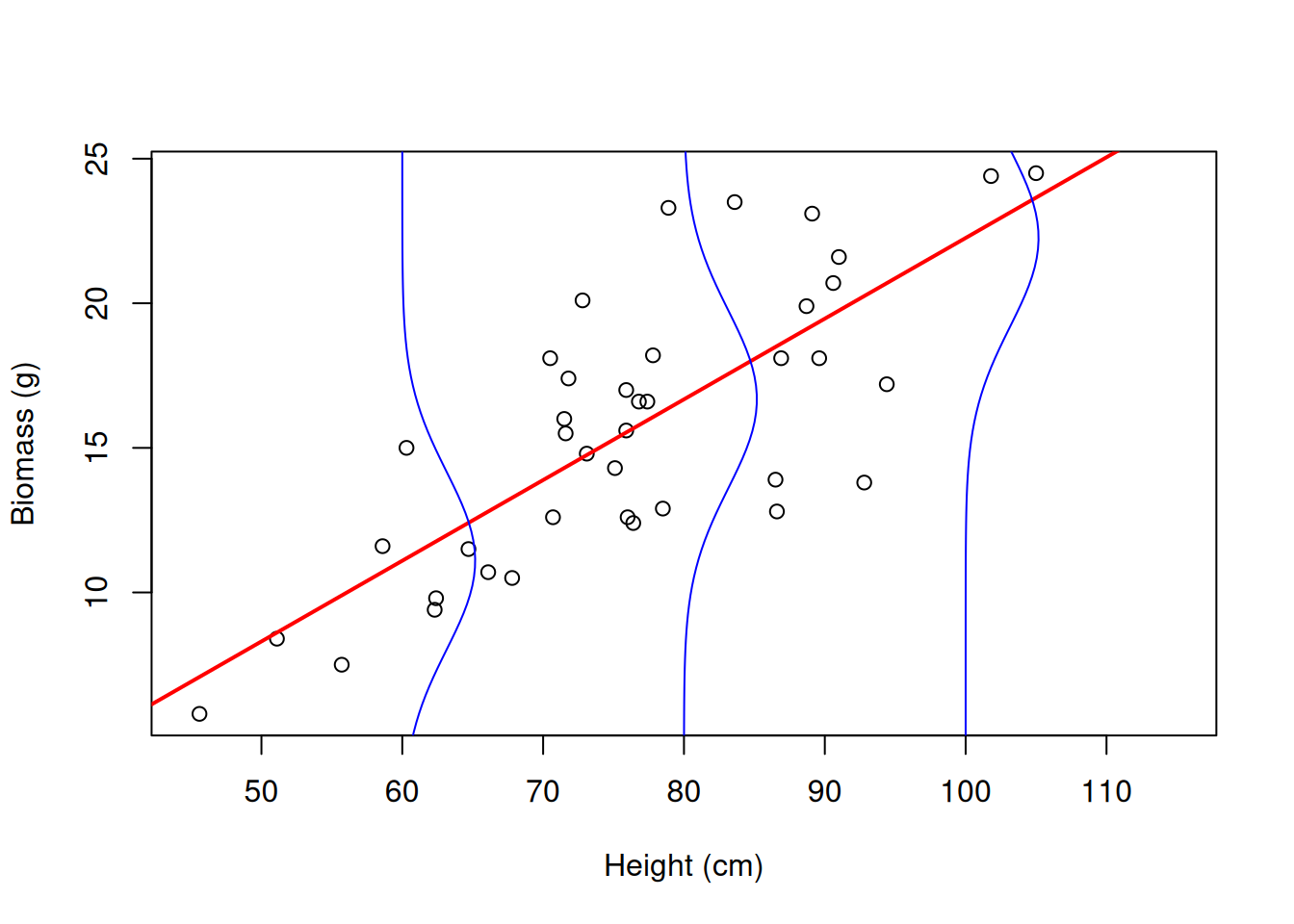

# the model's assumption, drawn: a normal curve of biomass at each of three heights
plot(wheat$height, wheat$biomass, xlab = "Height (cm)", ylab = "Biomass (g)", xlim = c(45, 115))
abline(model, col = "red", lwd = 2)
for (x0 in c(60, 80, 100)) {
  y <- seq(mu[1] - 10, mu[3] + 10, length.out = 100)
  lines(x0 + 40 * dnorm(y, predict(model, data.frame(height = x0)), sigma(model)), y, col = "blue")
}

Part B. How good is the line?

6) R-squared

ss_total <- sum((wheat$biomass - mean(wheat$biomass))^2)
ss_resid <- sum(resid(model)^2)
ss_total

[1] 891.299

ss_resid

[1] 361.2284

1 - ss_resid / ss_total     # R2 by hand

[1] 0.594717

summary(model)$r.squared

[1] 0.594717

cor(wheat$height, wheat$biomass)^2   # = r2

[1] 0.594717

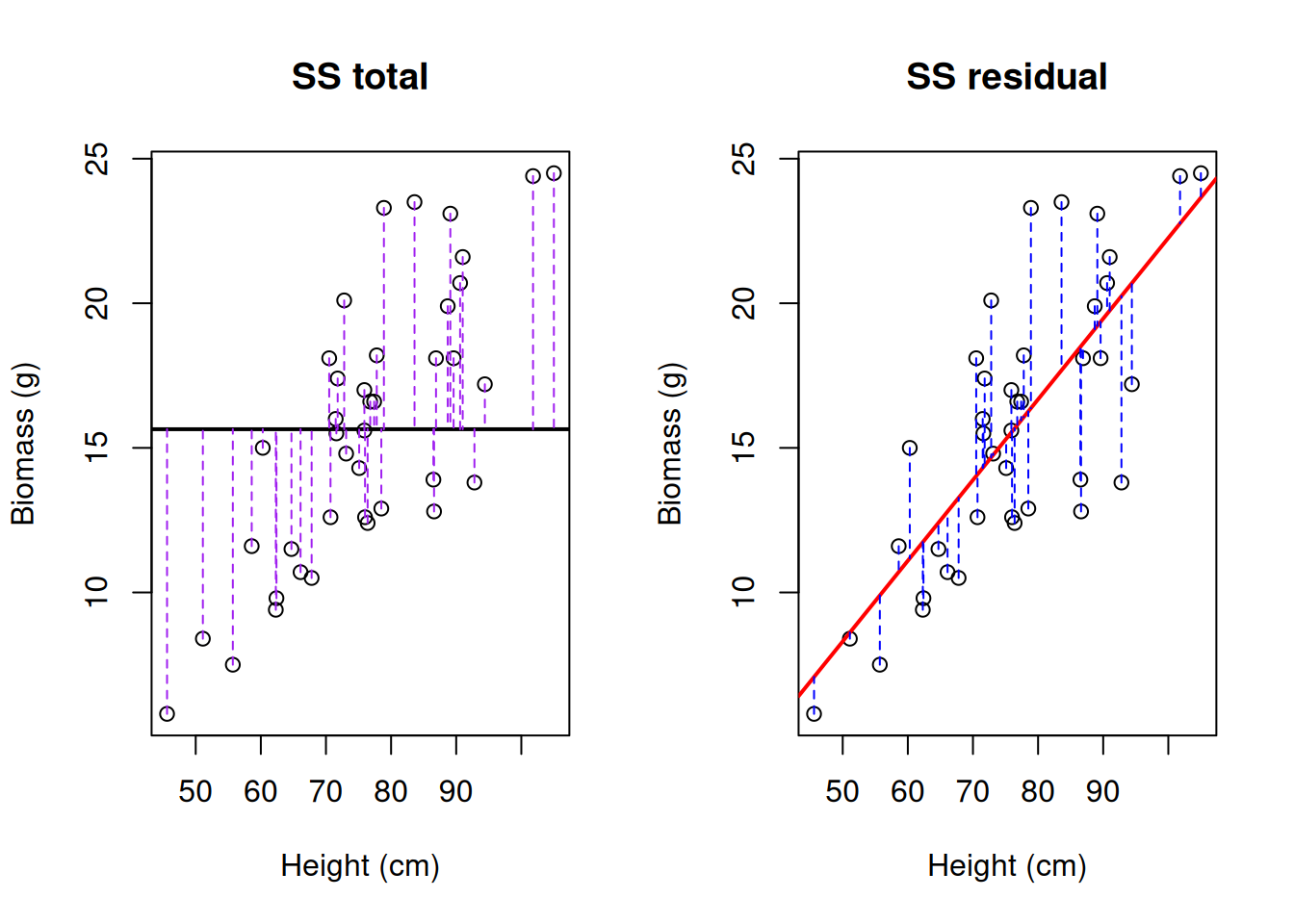

# the two pictures: variation around the mean vs around the line
par(mfrow = c(1, 2))
plot(wheat$height, wheat$biomass, main = "SS total", xlab = "Height (cm)", ylab = "Biomass (g)")
abline(h = mean(wheat$biomass), lwd = 2)
segments(wheat$height, wheat$biomass, wheat$height, mean(wheat$biomass), col = "purple", lty = 2)
plot(wheat$height, wheat$biomass, main = "SS residual", xlab = "Height (cm)", ylab = "Biomass (g)")
abline(model, col = "red", lwd = 2)
segments(wheat$height, wheat$biomass, wheat$height, fitted(model), col = "blue", lty = 2)

par(mfrow = c(1, 1))

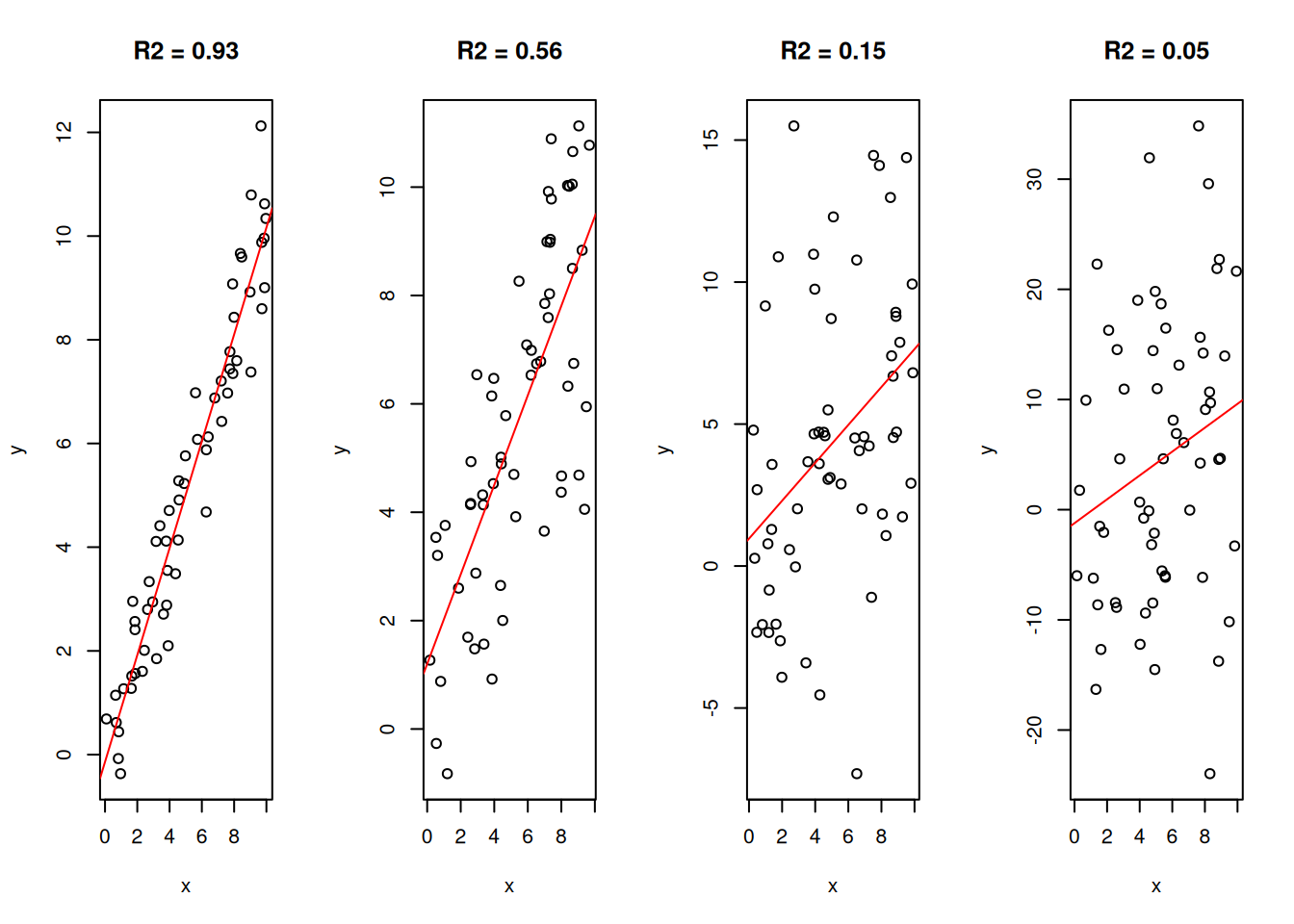

# what different R2 values look like (simulated: same slope, more or less noise)
set.seed(7)
par(mfrow = c(1, 4))
for (r2_target in c(0.9, 0.6, 0.3, 0.05)) {
  x <- runif(60, 0, 10)
  y <- x + rnorm(60, sd = sqrt((1 - r2_target) / r2_target * var(x)))
  plot(x, y, main = paste("R2 =", round(summary(lm(y ~ x))$r.squared, 2)))
  abline(lm(y ~ x), col = "red")
}

par(mfrow = c(1, 1))

7) summary(): the full output

summary(model)

Call:
lm(formula = biomass ~ height, data = wheat)

Residuals:
    Min      1Q  Median      3Q     Max
-6.4505 -2.1590  0.0566  1.6519  6.9287

Coefficients:
            Estimate Std. Error t value Pr(>|t|)
(Intercept) -5.64783    2.89282  -1.952   0.0583 .
height       0.27908    0.03737   7.467 5.79e-09 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 3.083 on 38 degrees of freedom
Multiple R-squared:  0.5947,    Adjusted R-squared:  0.5841
F-statistic: 55.76 on 1 and 38 DF,  p-value: 5.785e-09

# the slope's t-test: estimate / SE, 38 df
coef(summary(model))

              Estimate Std. Error   t value     Pr(>|t|)
(Intercept) -5.6478330 2.89282132 -1.952362 5.829150e-02
height       0.2790764 0.03737278  7.467371 5.785277e-09

0.27908 / 0.03737                     # t

[1] 7.468022

2 * pt(7.467, df = 38, lower.tail = FALSE)   # two-sided p-value

[1] 5.791889e-09

# confidence interval for the slope: estimate +/- t * SE
confint(model)

                  2.5 %    97.5 %
(Intercept) -11.5040436 0.2083775
height        0.2034192 0.3547337

0.27908 + c(-1, 1) * qt(0.975, df = 38) * 0.03737

[1] 0.2034284 0.3547316

# where the SE comes from: re-sample the plants and refit (a bootstrap)
set.seed(206)
slopes <- replicate(1000, {
  i <- sample(40, replace = TRUE)   # re-sample the plants
  coef(lm(biomass ~ height, data = wheat[i, ]))[2]
})
sd(slopes)        # spread of the slope

[1] 0.03301875

summary(model)$coefficients[2, "Std. Error"]

[1] 0.03737278

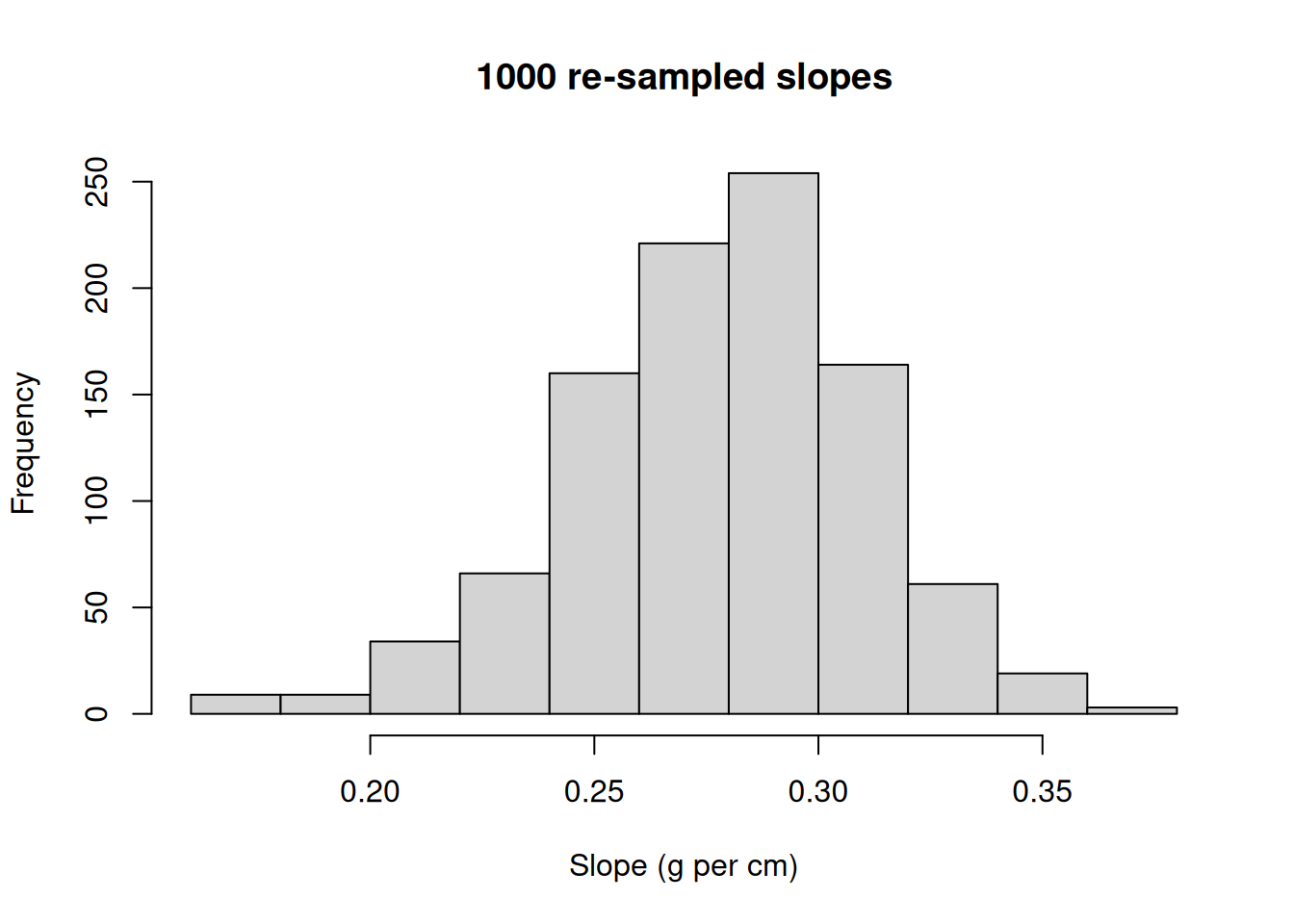

hist(slopes, xlab = "Slope (g per cm)", main = "1000 re-sampled slopes")

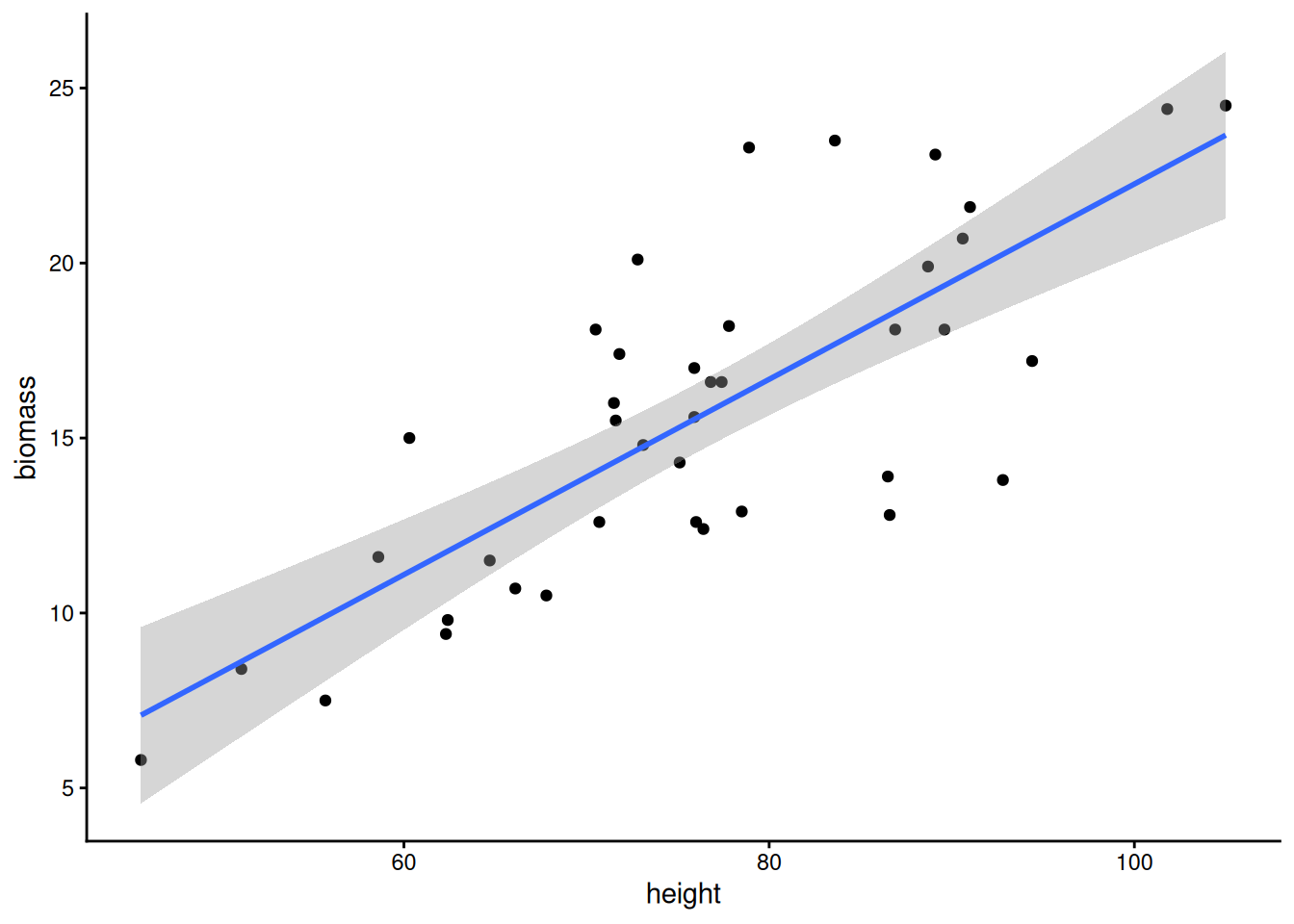

# the line with its confidence band
ggplot(wheat, aes(x = height, y = biomass)) +
  geom_point() +
  geom_smooth(method = "lm") +
  theme_classic()

# two intervals: for the LINE (mean biomass at that height) and for ONE NEW PLANT
new <- data.frame(height = c(60, 80, 100))
predict(model, newdata = new, interval = "confidence")   # the line

       fit       lwr      upr
1 11.09675  9.517423 12.67608
2 16.67828 15.652415 17.70415
3 22.25981 20.212925 24.30669

predict(model, newdata = new, interval = "prediction")   # a new plant: much wider

       fit       lwr      upr
1 11.09675  4.658465 17.53504
2 16.67828 10.352962 23.00360
3 22.25981 15.691172 28.82845

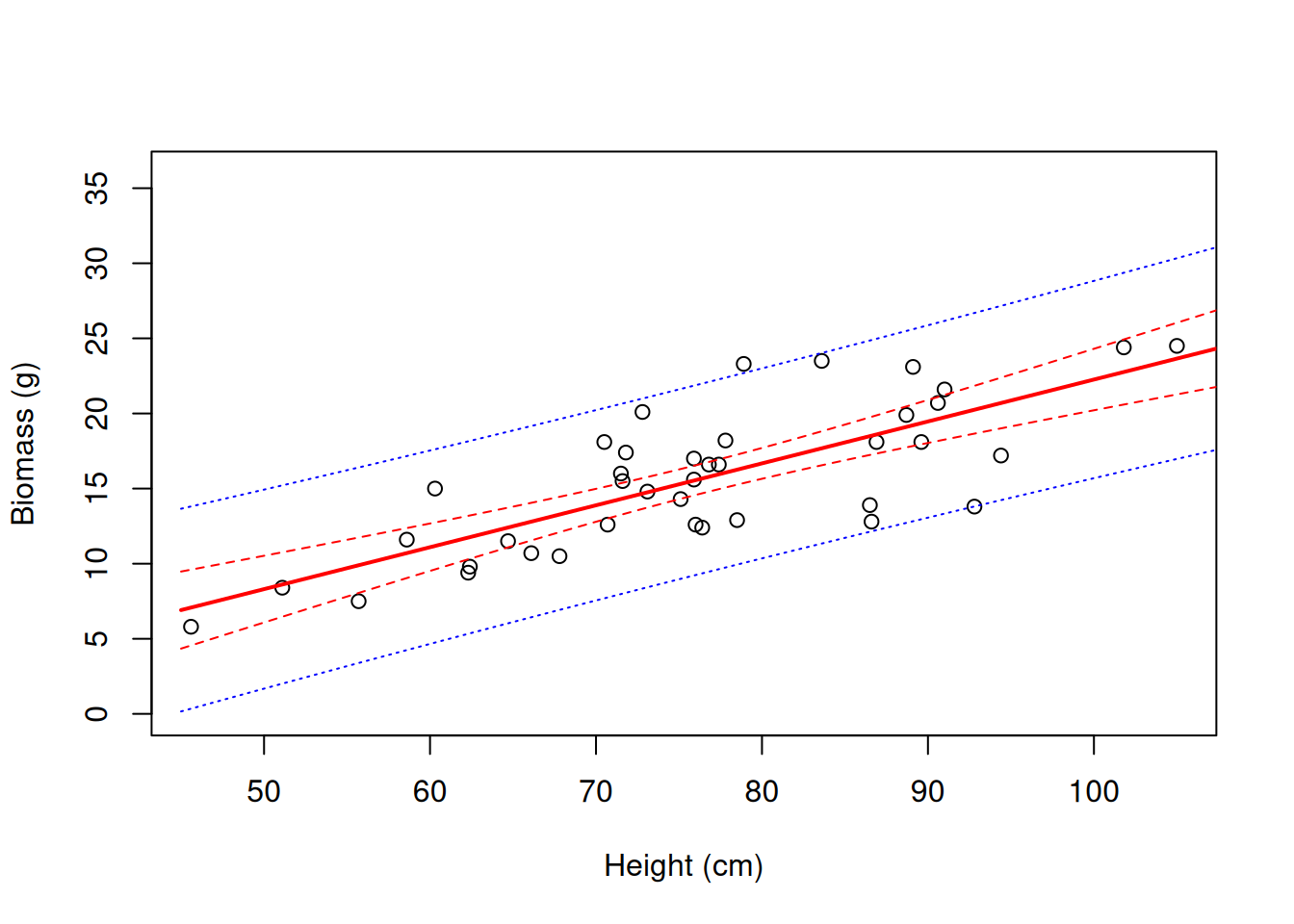

# both bands on one plot: predict over a grid of heights, then draw the lines
grid <- data.frame(height = 45:110)
ci <- predict(model, grid, interval = "confidence")
pi <- predict(model, grid, interval = "prediction")
plot(wheat$height, wheat$biomass, xlab = "Height (cm)", ylab = "Biomass (g)", ylim = c(0, 36))
lines(grid$height, ci[, "fit"], col = "red", lwd = 2)
lines(grid$height, ci[, "lwr"], col = "red", lty = 2); lines(grid$height, ci[, "upr"], col = "red", lty = 2)
lines(grid$height, pi[, "lwr"], col = "blue", lty = 3); lines(grid$height, pi[, "upr"], col = "blue", lty = 3)

8) The F-test

r2 <- summary(model)$r.squared
k  <- 1            # predictors
n  <- nrow(wheat)  # plants
f  <- (r2 / k) / ((1 - r2) / (n - k - 1))
f

[1] 55.76163

pf(f, k, n - k - 1, lower.tail = FALSE)   # p-value

[1] 5.785277e-09

summary(model)$fstatistic

   value    numdf    dendf
55.76163  1.00000 38.00000

7.467^2            # one predictor: F = t^2

[1] 55.75609

Part C. Assumptions: what can go wrong

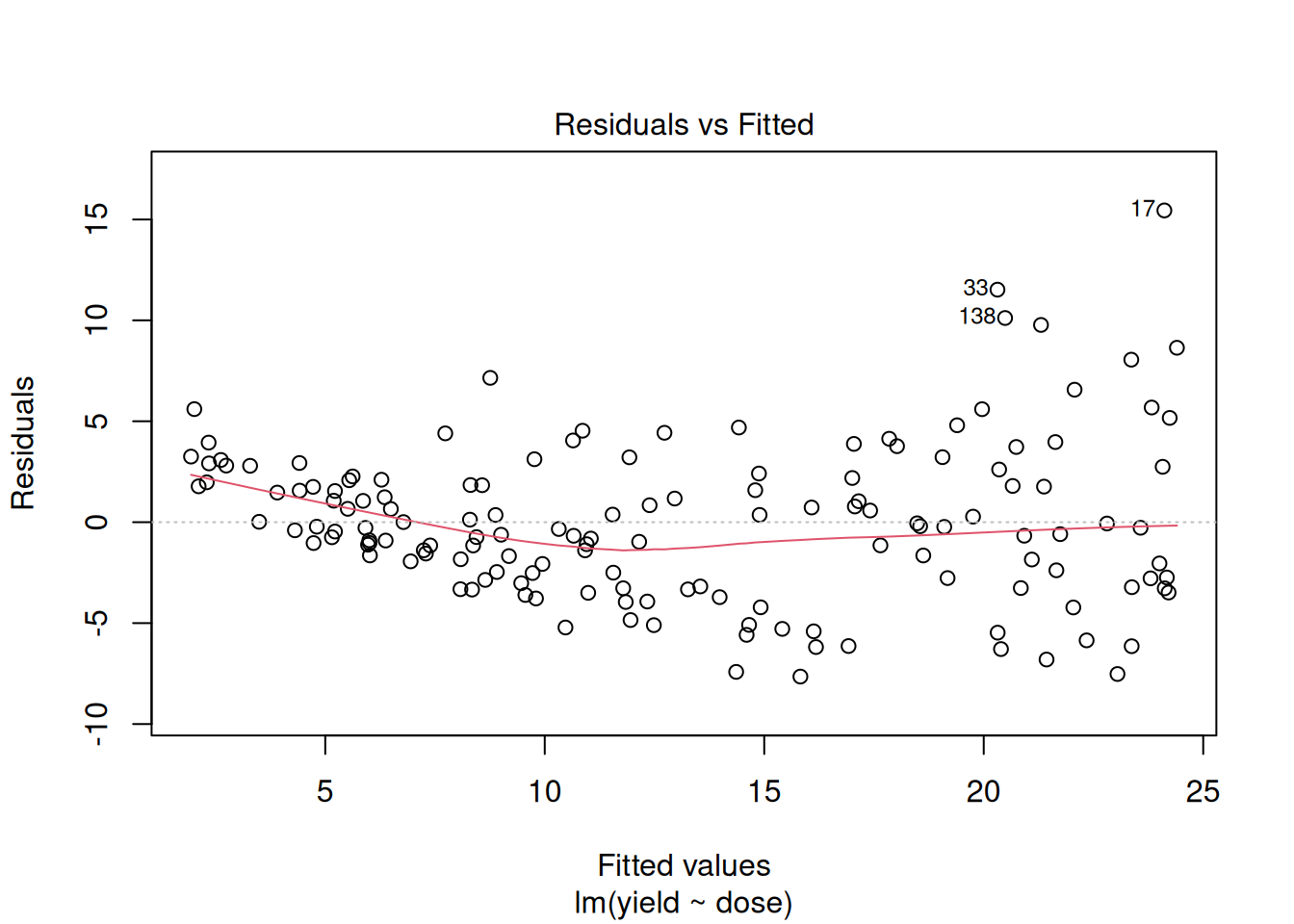

9) Diagnostic plots

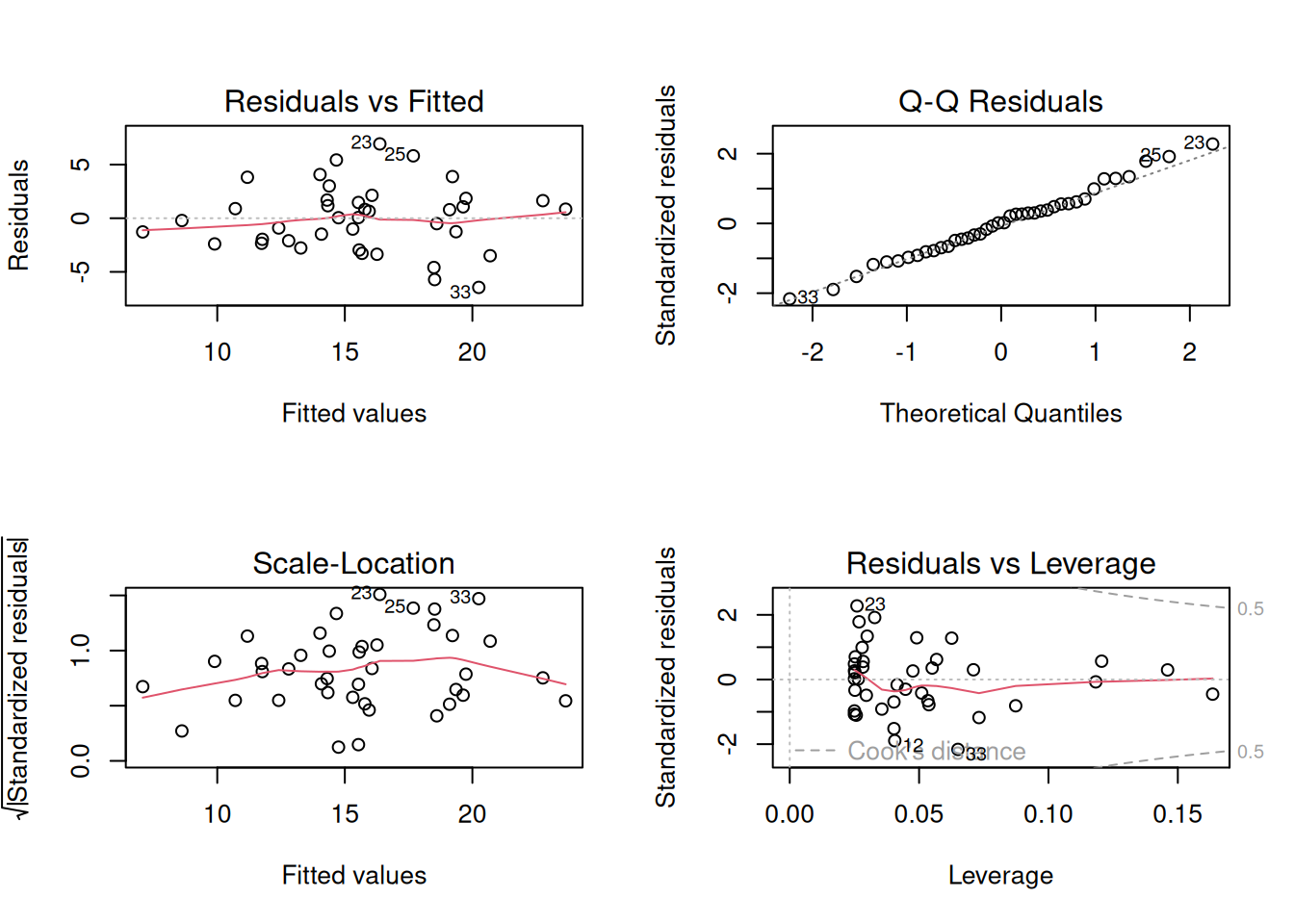

par(mfrow = c(2, 2))   # four panels in one window
plot(model)

par(mfrow = c(1, 1))

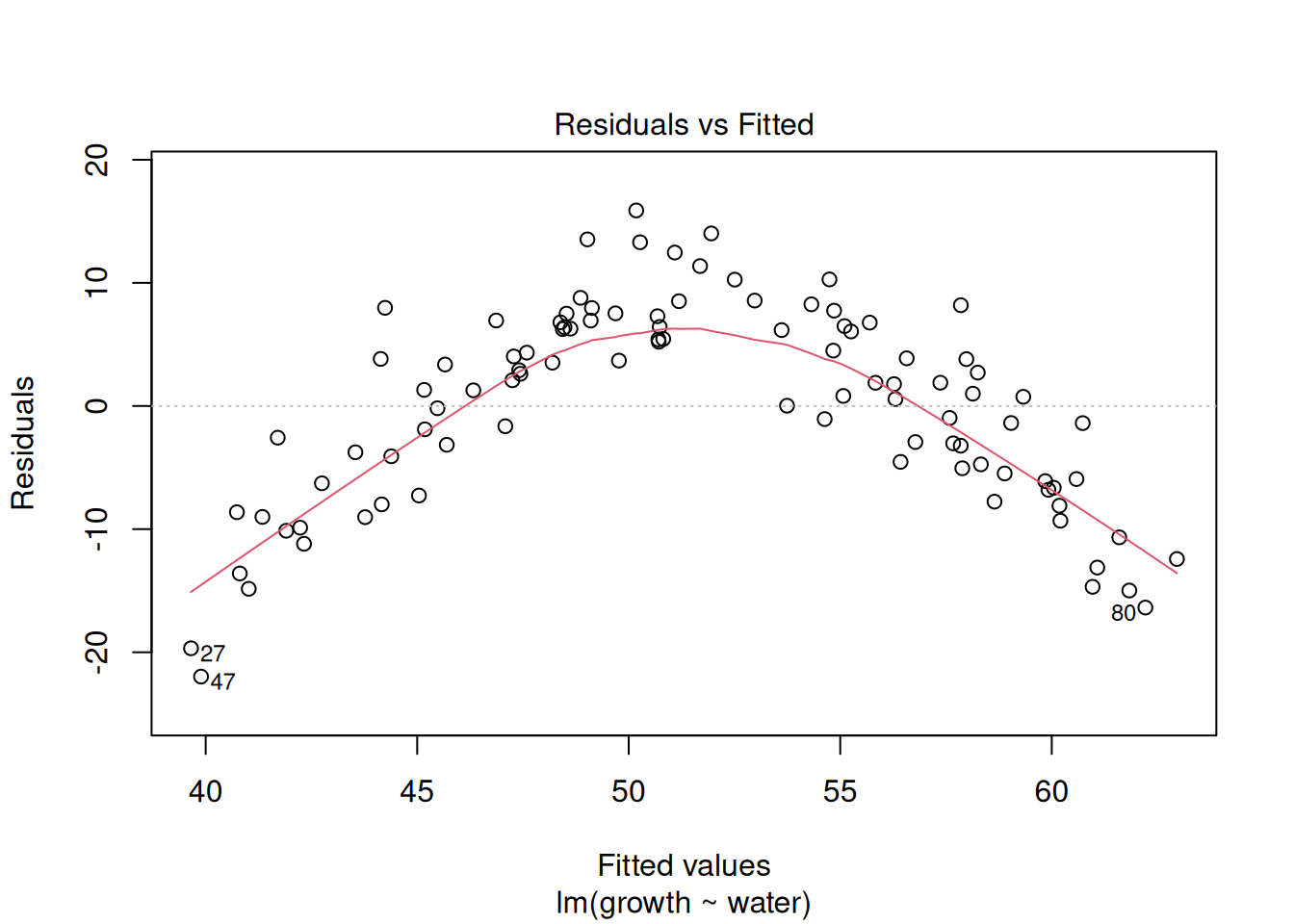

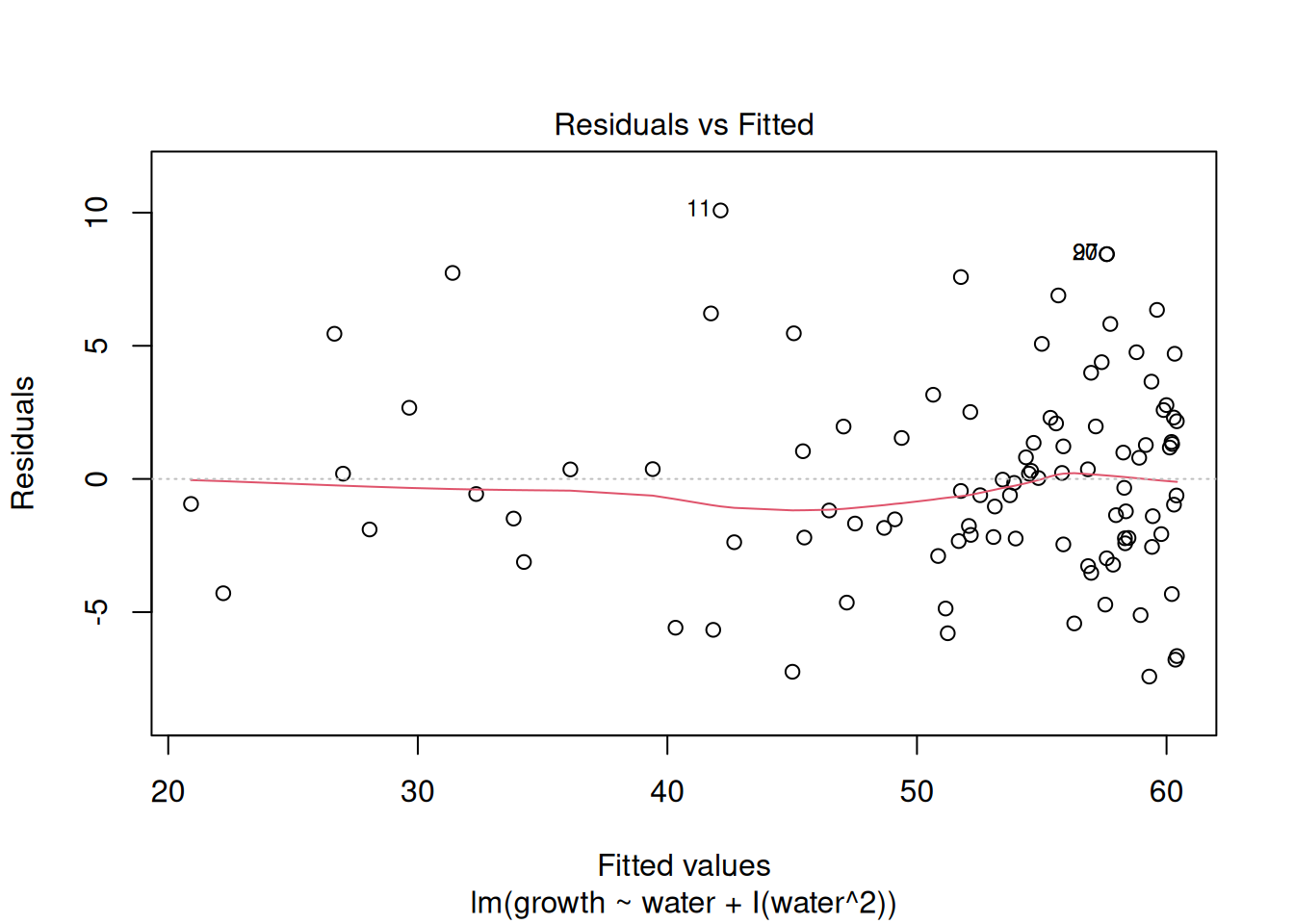

# 1 residuals vs fitted: a shapeless cloud = linear
# 2 Q-Q: residuals on the line = normal

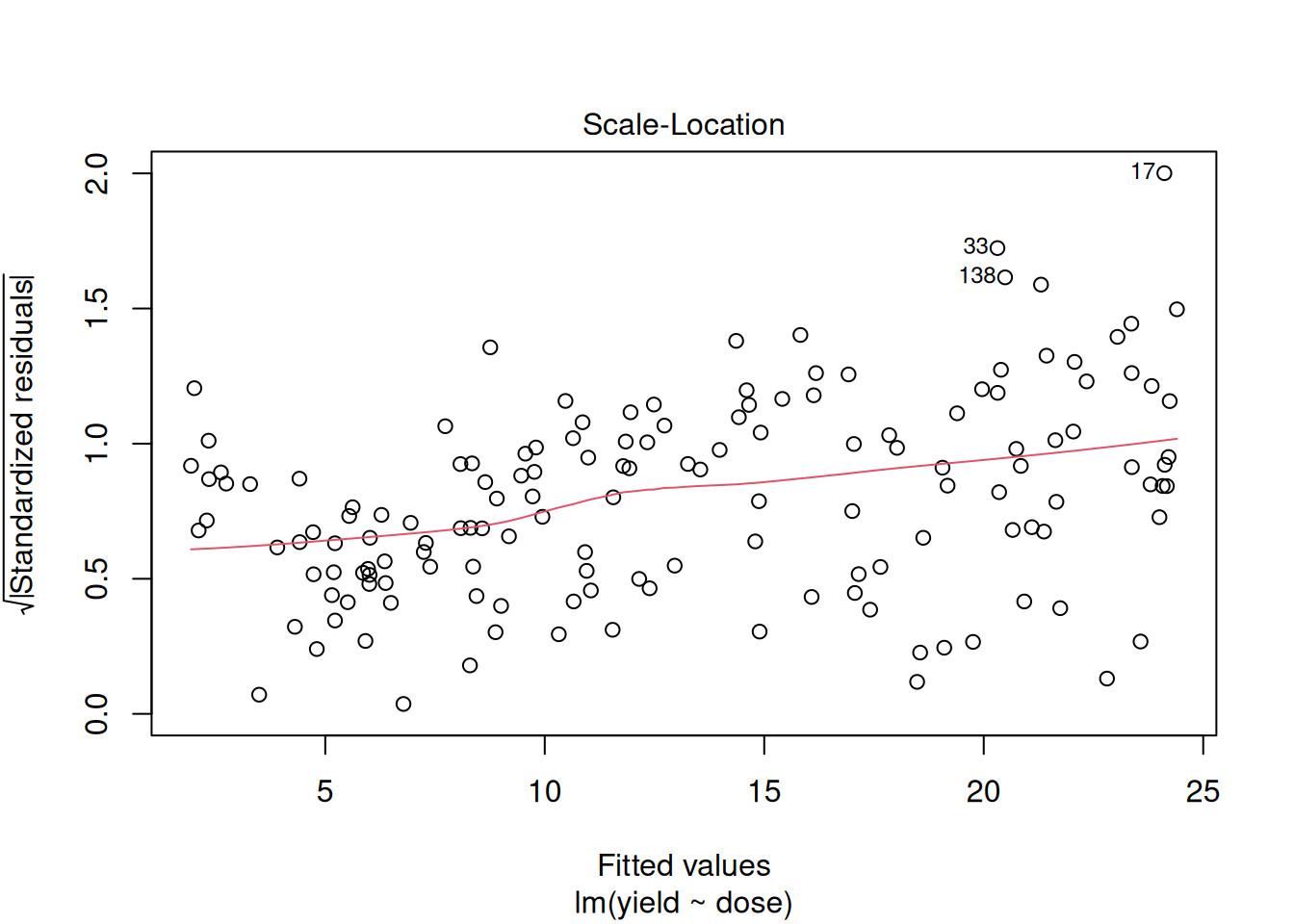

# 3 scale-location: flat = equal variance

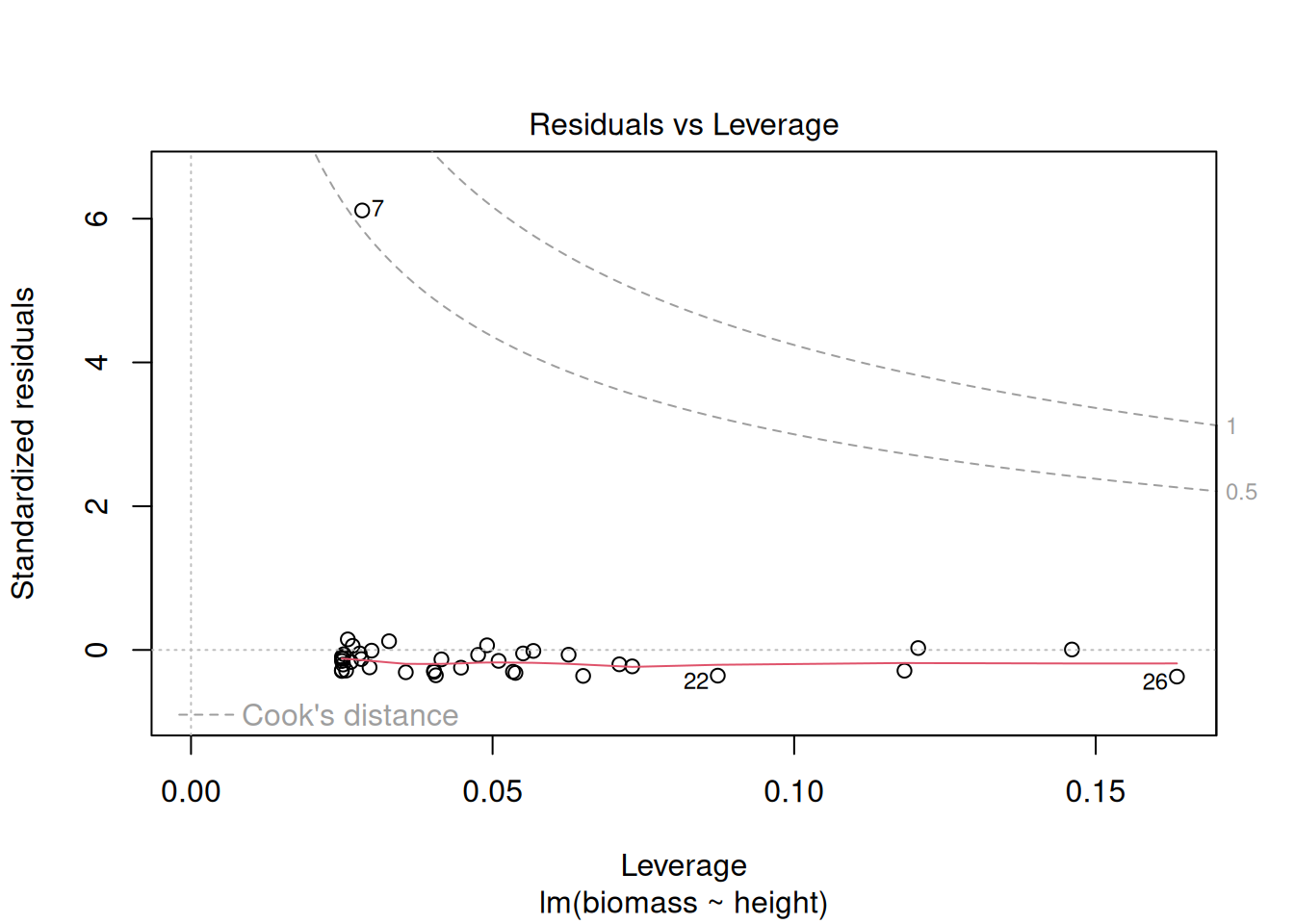

# 4 residuals vs leverage: points with outsized pull on the line

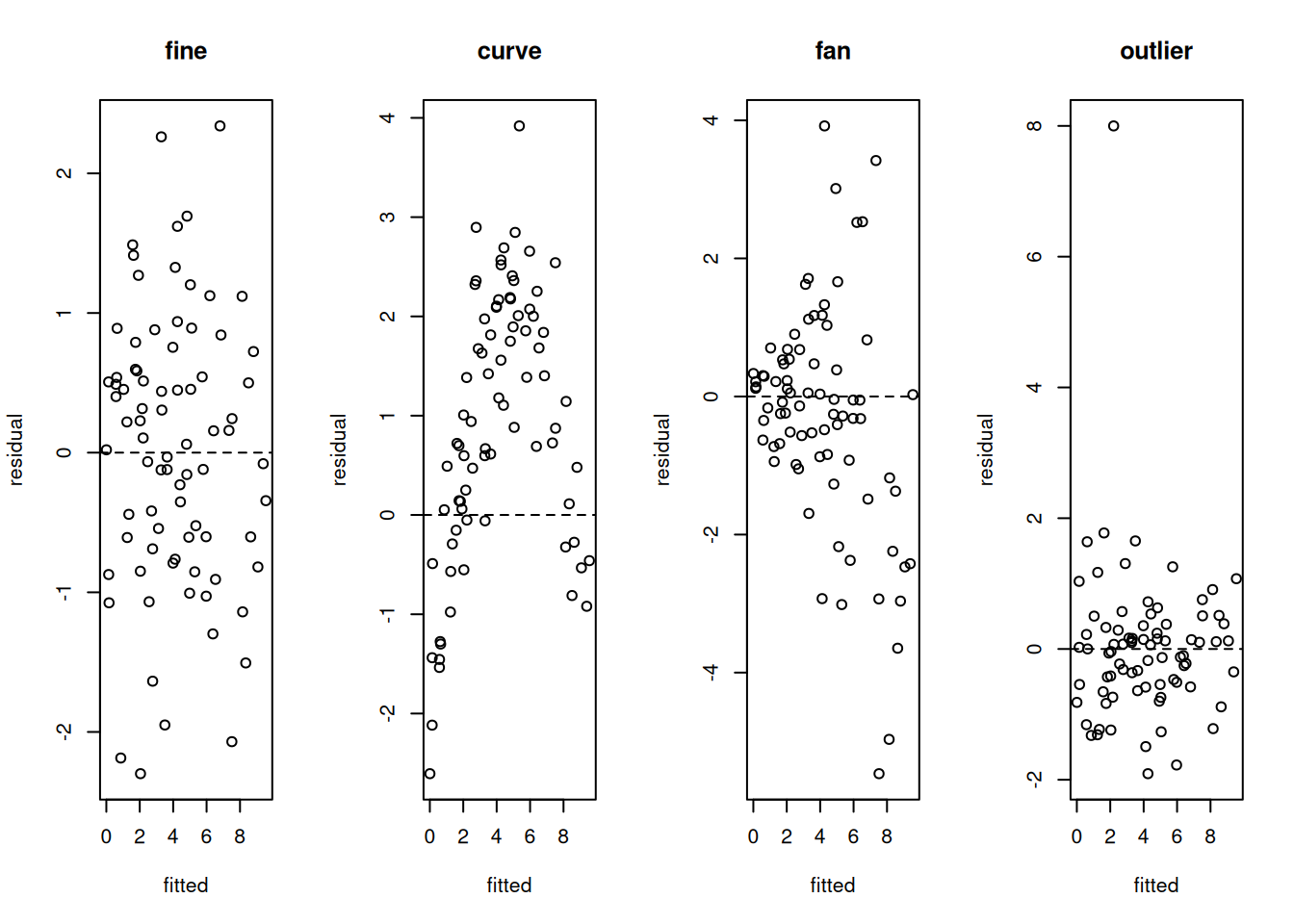

# the four residual-vs-fitted patterns to recognize (simulated)
set.seed(11)
x <- runif(80, 0, 10)
par(mfrow = c(1, 4))
plot(x, rnorm(80), main = "fine", xlab = "fitted", ylab = "residual"); abline(h = 0, lty = 2)
plot(x, -((x - 5)^2) / 6 + 2 + rnorm(80, sd = 0.7), main = "curve", xlab = "fitted", ylab = "residual"); abline(h = 0, lty = 2)
plot(x, rnorm(80, sd = 0.2 + 0.3 * x), main = "fan", xlab = "fitted", ylab = "residual"); abline(h = 0, lty = 2)
plot(x, c(rnorm(79, sd = 0.8), 8), main = "outlier", xlab = "fitted", ylab = "residual"); abline(h = 0, lty = 2)

par(mfrow = c(1, 1))

10) Violation 1: a curve

set.seed(1)
water  <- runif(100, 0, 60)   # mm per week
growth <- 20 + 2.2 * water - 0.03 * water^2 +
  rnorm(100, sd = 4)
pots   <- data.frame(water, growth)

model_w <- lm(growth ~ water, data = pots)
summary(model_w)$r.squared

[1] 0.38397

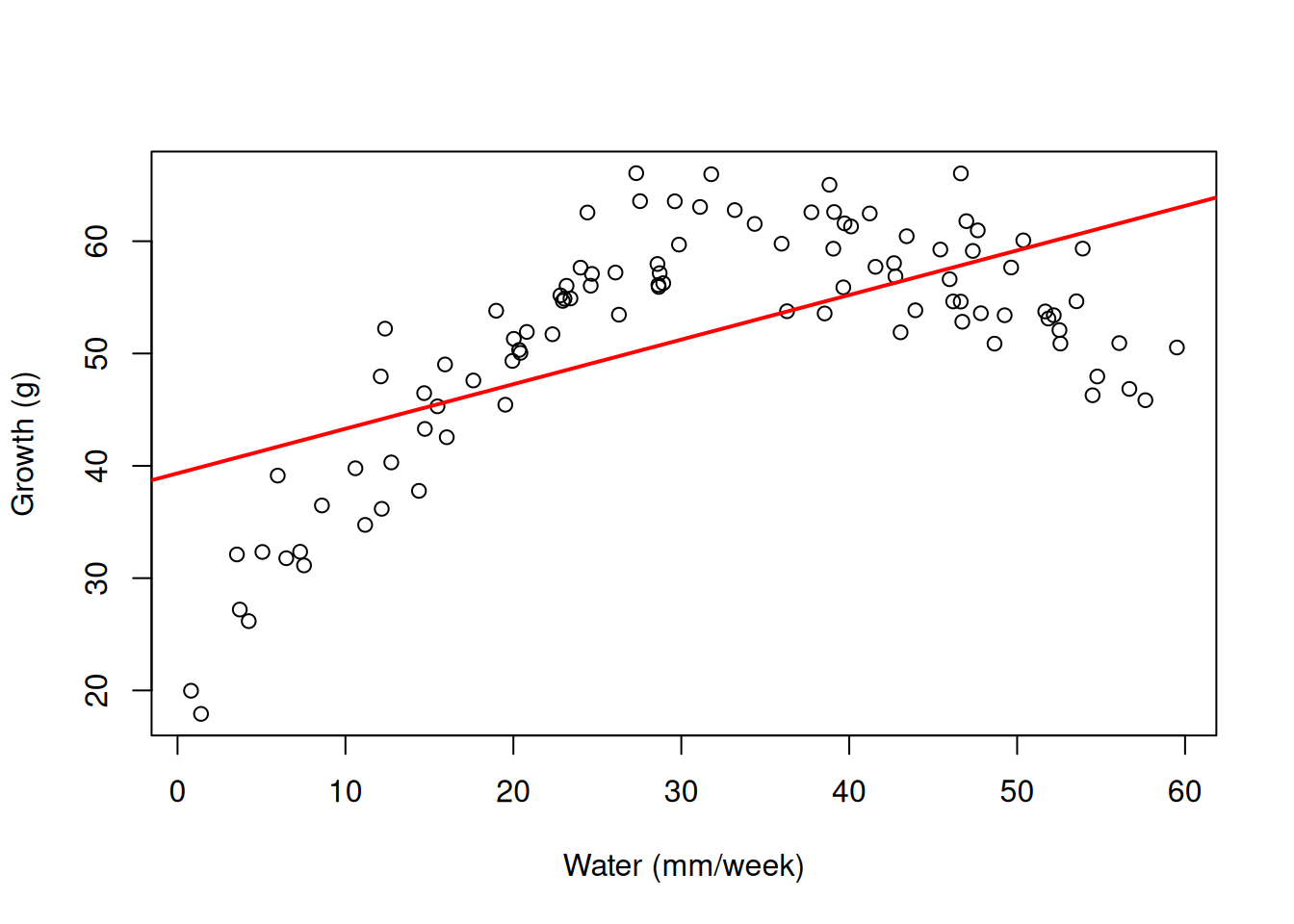

plot(pots$water, pots$growth, xlab = "Water (mm/week)", ylab = "Growth (g)")
abline(model_w, col = "red", lwd = 2)

plot(model_w, which = 1)   # residuals vs fitted: an arch

# fix: add a squared term (I() protects the ^ inside a formula)
model_w2 <- lm(growth ~ water + I(water^2), data = pots)
round(coef(model_w2), 3)

(Intercept)       water  I(water^2)
     19.137       2.234      -0.030

summary(model_w2)$r.squared

[1] 0.8674312

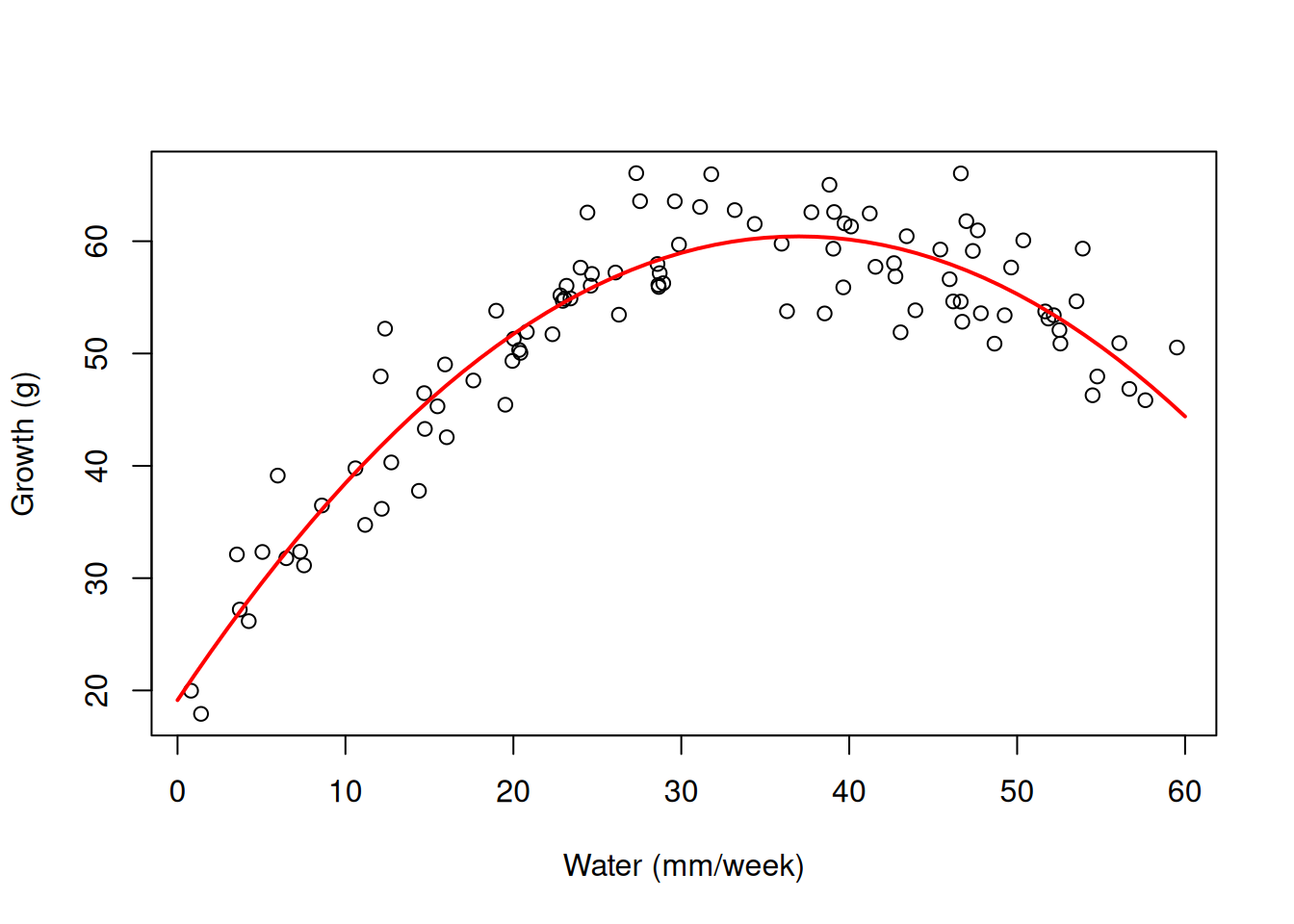

# draw a curved fit: predict over a grid, then lines()
plot(pots$water, pots$growth, xlab = "Water (mm/week)", ylab = "Growth (g)")
lines(0:60, predict(model_w2, data.frame(water = 0:60)), col = "red", lwd = 2)

plot(model_w2, which = 1)

11) Violation 2: a fan

set.seed(2)
dose  <- runif(150, 0, 60)   # fertilizer, kg/ha
yield <- exp(1.5 + 0.03 * dose + rnorm(150, sd = 0.25))
plots <- data.frame(dose, yield)

model_f <- lm(yield ~ dose, data = plots)

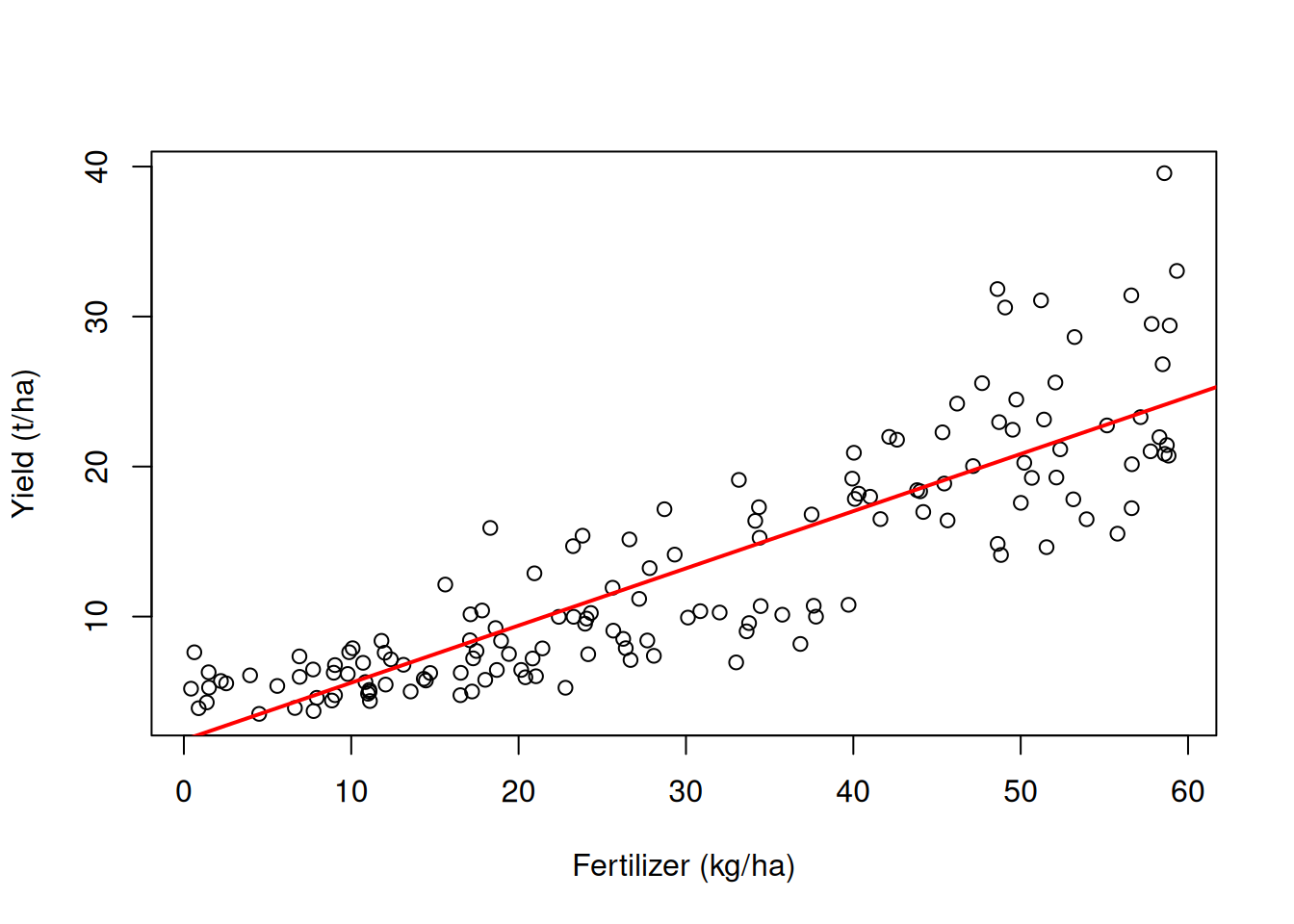

plot(plots$dose, plots$yield, xlab = "Fertilizer (kg/ha)", ylab = "Yield (t/ha)")
abline(model_f, col = "red", lwd = 2)

plot(model_f, which = 1)   # the spread grows with the fitted value

plot(model_f, which = 3)   # scale-location: rising = unequal variance

# fix: log the response. The slope becomes a percent change.
model_log <- lm(log(yield) ~ dose, data = plots)
round(coef(model_log), 3)

(Intercept)        dose
       1.50        0.03

exp(0.030)      # x 1.03 per kg/ha: +3%

[1] 1.030455

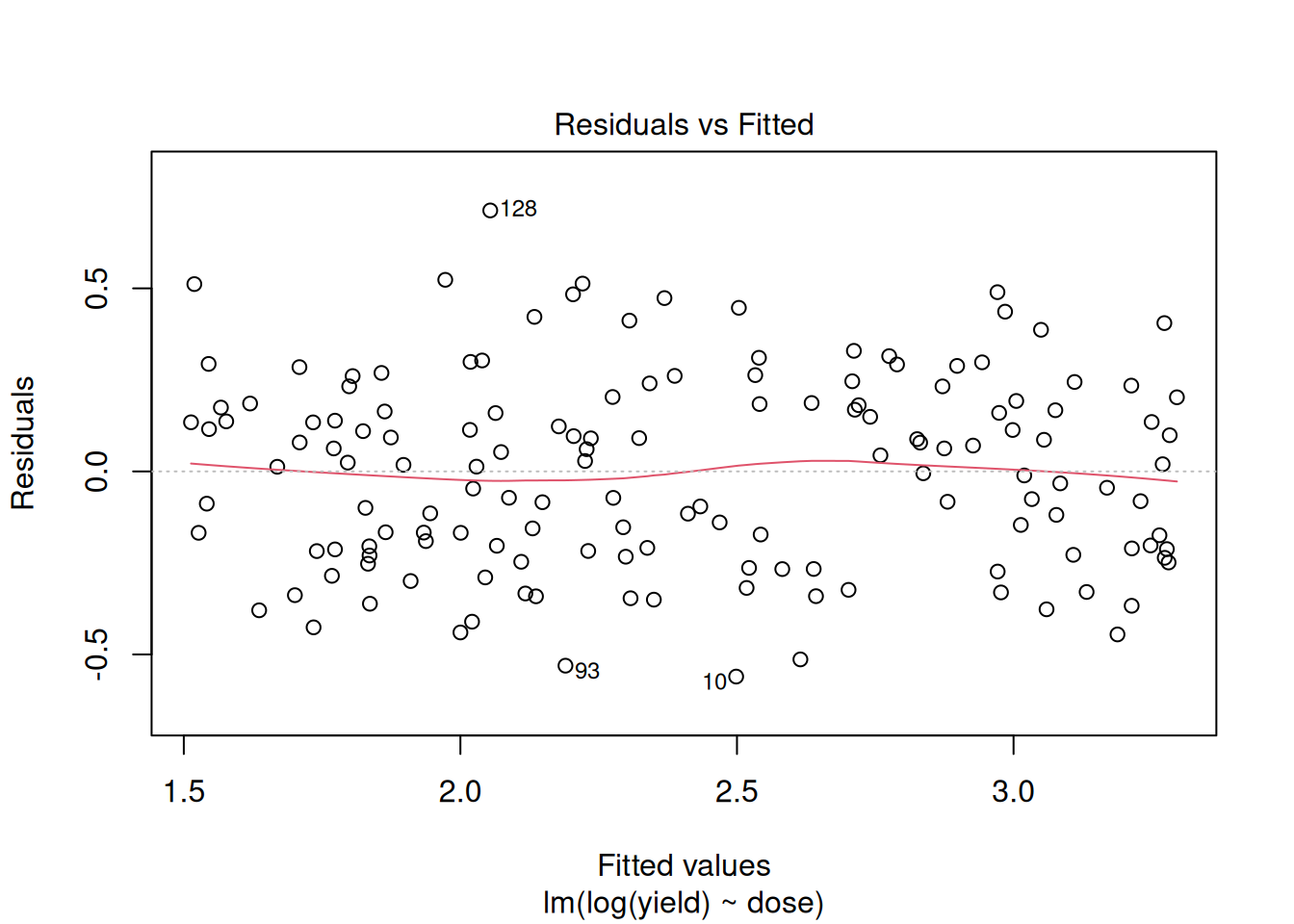

plot(model_log, which = 1)

11b) Violation 3: residuals that are not normal (a count response)

set.seed(4)
size  <- runif(80, 1, 10)   # plant size
# seeds per plant: a count, many zeros
seeds <- rpois(80, lambda = exp(-1 + 0.35 * size))
pods  <- data.frame(size, seeds)

model_s <- lm(seeds ~ size, data = pods)
shapiro.test(resid(model_s))

    Shapiro-Wilk normality test

data:  resid(model_s)
W = 0.92704, p-value = 0.0002078

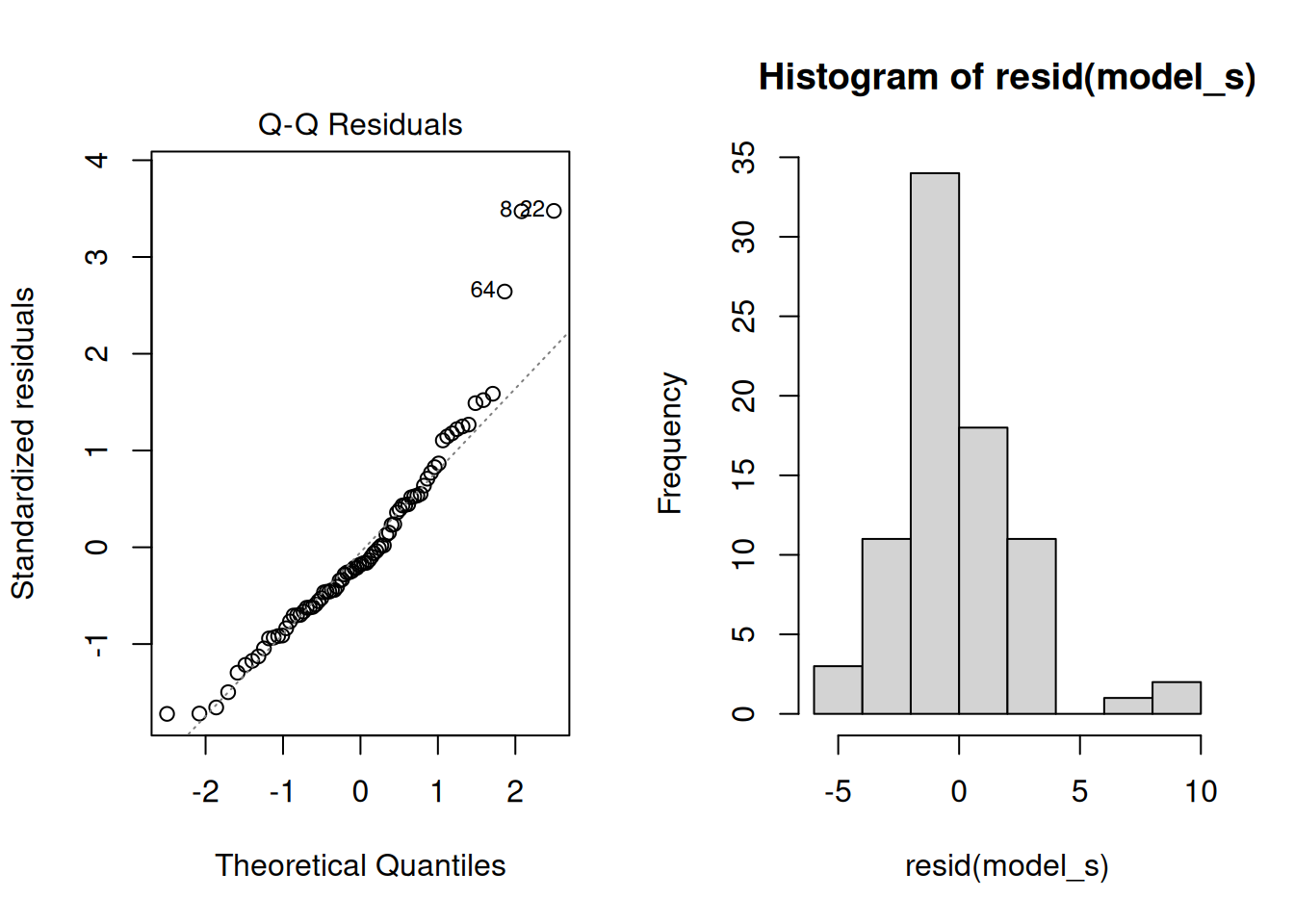

par(mfrow = c(1, 2)); plot(model_s, which = 2); hist(resid(model_s)); par(mfrow = c(1, 1))

# the cure is a model for counts: a Poisson GLM (next week)
# glm(seeds ~ size, data = pods, family = poisson)

11c) Violation 4: one bad point (leverage, Cook’s distance)

typo <- wheat
typo$biomass[7] <- 164   # 16.4 typed as 164

model_t <- lm(biomass ~ height, data = typo)
coef(model)      # the real slope

(Intercept)      height
 -5.6478330   0.2790764

coef(model_t)    # with the typo

(Intercept)      height
  6.0119191   0.1747512

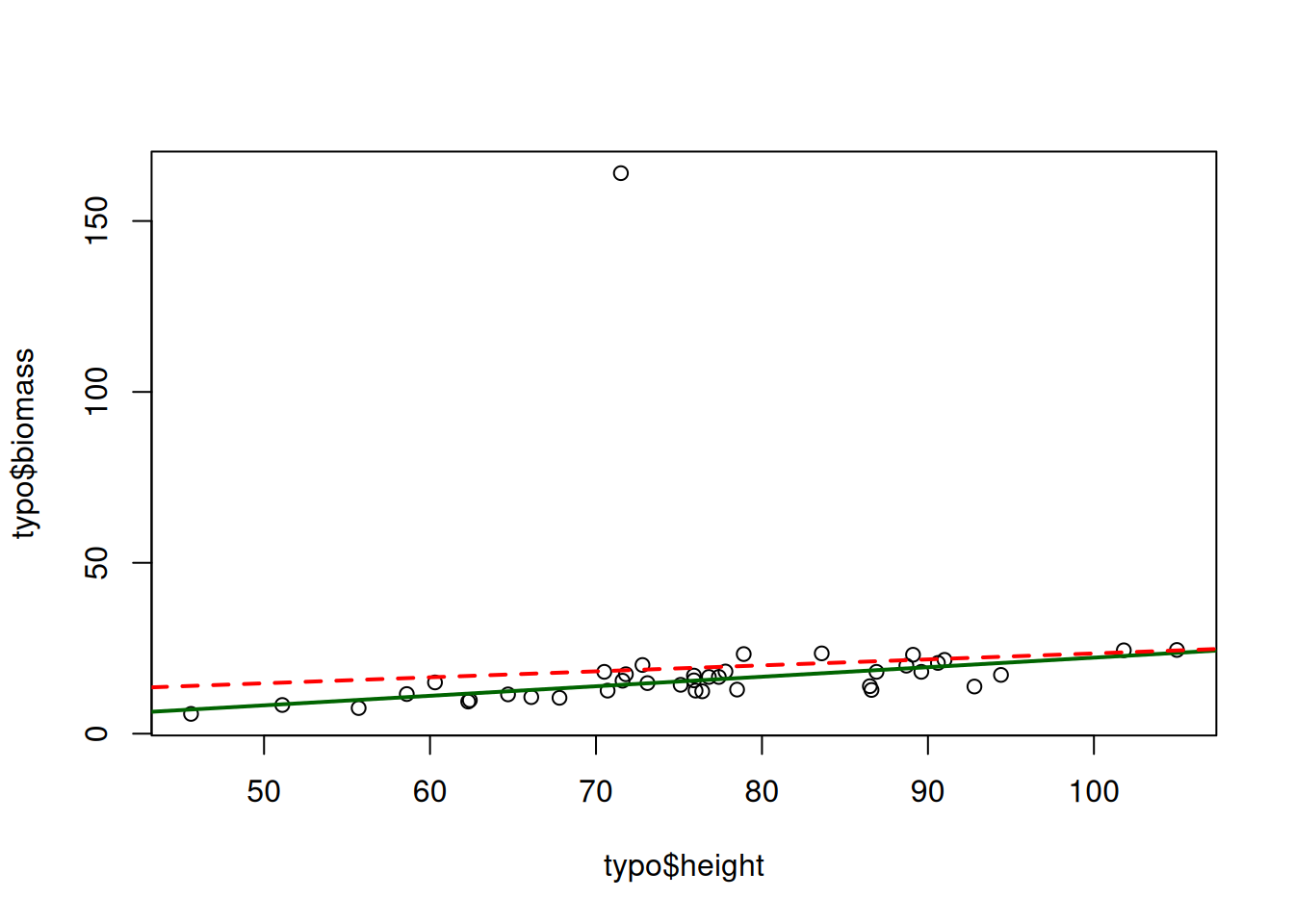

plot(typo$height, typo$biomass); abline(model, col = "darkgreen", lwd = 2); abline(model_t, col = "red", lty = 2, lwd = 2)

which.max(cooks.distance(model_t))

7
7

max(cooks.distance(model_t))

[1] 0.5460262

plot(model_t, which = 5)   # residuals vs leverage, with Cook's distance contours

# the fix is not statistical: go back to the data sheet

11d) Violation 5: not independent (pseudoreplication)

set.seed(22)
pot_h <- rnorm(8, sd = 4)     # each pot has its own soil...
pot_b <- rnorm(8, sd = 2.5)   # ...and its own luck
pot   <- rep(1:8, each = 5)   # 5 tillers per pot, 8 pots
height  <- 70 + pot_h[pot] + rnorm(40, sd = 3)
biomass <- 2 + 0.2 * height + pot_b[pot] + rnorm(40, 0, 1)
pots <- data.frame(pot, height, biomass)

# 40 tillers treated as 40 plants
model_p <- lm(biomass ~ height, data = pots)
round(coef(summary(model_p)), 3)

            Estimate Std. Error t value Pr(>|t|)
(Intercept)   -0.757      3.925  -0.193    0.848
height         0.232      0.054   4.310    0.000

# the honest version: one value per pot, n = 8
pot_means <- aggregate(cbind(height, biomass) ~ pot, pots, mean)
round(coef(summary(lm(biomass ~ height, pot_means))), 3)

            Estimate Std. Error t value Pr(>|t|)
(Intercept)   -2.647      9.789   -0.27    0.796
height         0.259      0.135    1.92    0.103

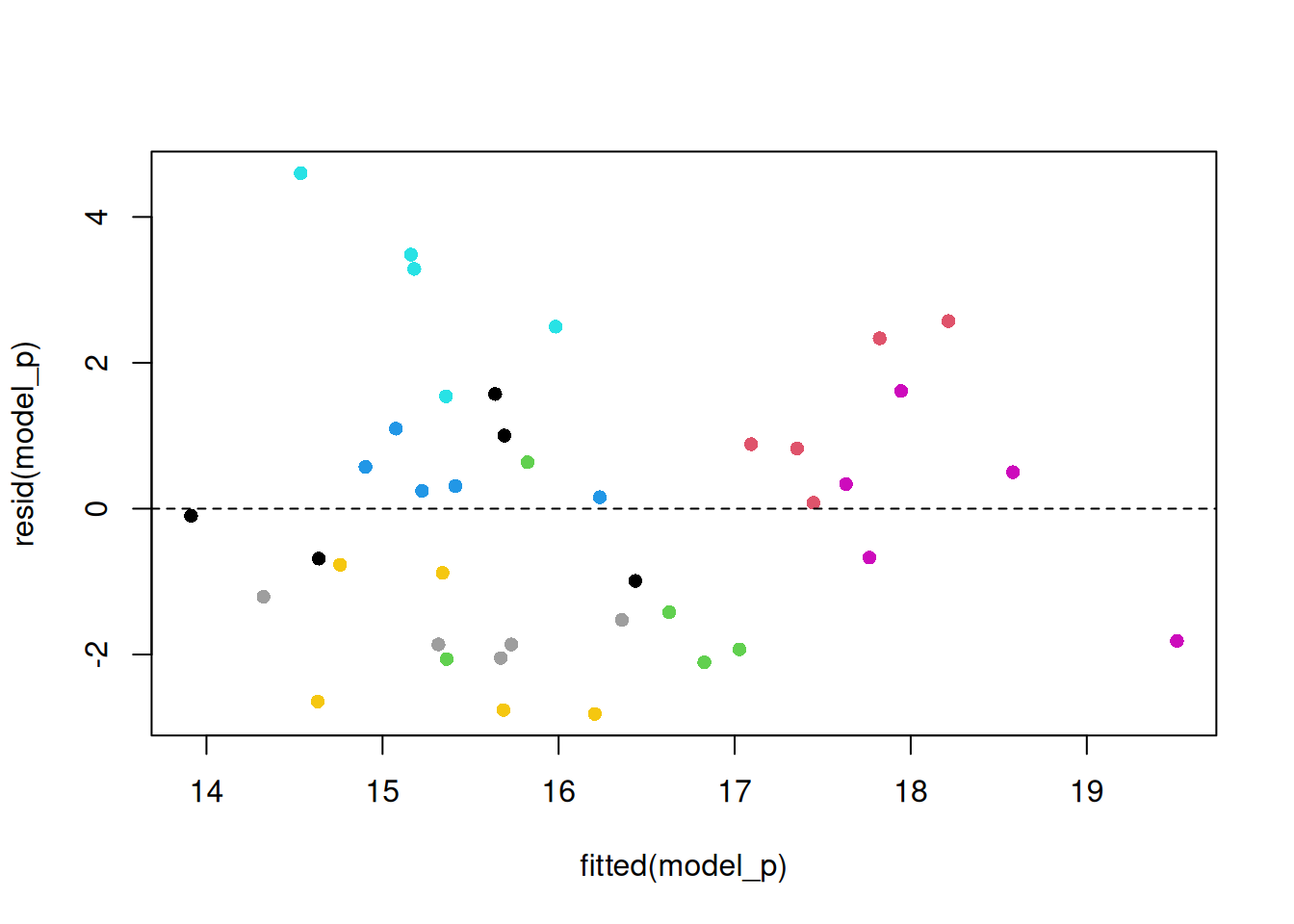

# the giveaway: residuals clump by pot
plot(fitted(model_p), resid(model_p), col = pots$pot, pch = 16); abline(h = 0, lty = 2)

# (a mixed model with pot as a random effect is the Week 10 bonus)

11e) Missing data: lm() drops rows silently

wheat_na <- wheat
# three plants were not measured
wheat_na$nitrogen[c(3, 11, 25)] <- NA

colSums(is.na(wheat_na))

    plant     water  nitrogen    height   biomass predicted  residual
        0         0         3         0         0         0         0

model_na <- lm(biomass ~ height + nitrogen, data = wheat_na)
nobs(model_na)                 # rows actually used

[1] 37

length(resid(model_na))        # shorter than the data frame!

[1] 37

sum(complete.cases(wheat_na))

[1] 37

model_na <- lm(biomass ~ height + nitrogen, wheat_na,
  na.action = na.exclude)
# padded with NA: lines up with the data
length(resid(model_na))

[1] 40

wheat_na$residual <- resid(model_na)

Part D. Multiple regression

12) Two predictors

model2 <- lm(biomass ~ height + nitrogen, data = wheat)
summary(model2)

Call:
lm(formula = biomass ~ height + nitrogen, data = wheat)

Residuals:
    Min      1Q  Median      3Q     Max
-5.2589 -1.3734 -0.1355  1.2666  4.4950

Coefficients:
            Estimate Std. Error t value Pr(>|t|)
(Intercept) -2.72580    2.45074  -1.112    0.273
height       0.19902    0.03538   5.625 2.02e-06 ***
nitrogen     0.04862    0.01087   4.472 7.11e-05 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 2.517 on 37 degrees of freedom
Multiple R-squared:  0.7369,    Adjusted R-squared:  0.7227
F-statistic: 51.82 on 2 and 37 DF,  p-value: 1.87e-11

# each slope: the effect of that predictor holding the other fixed

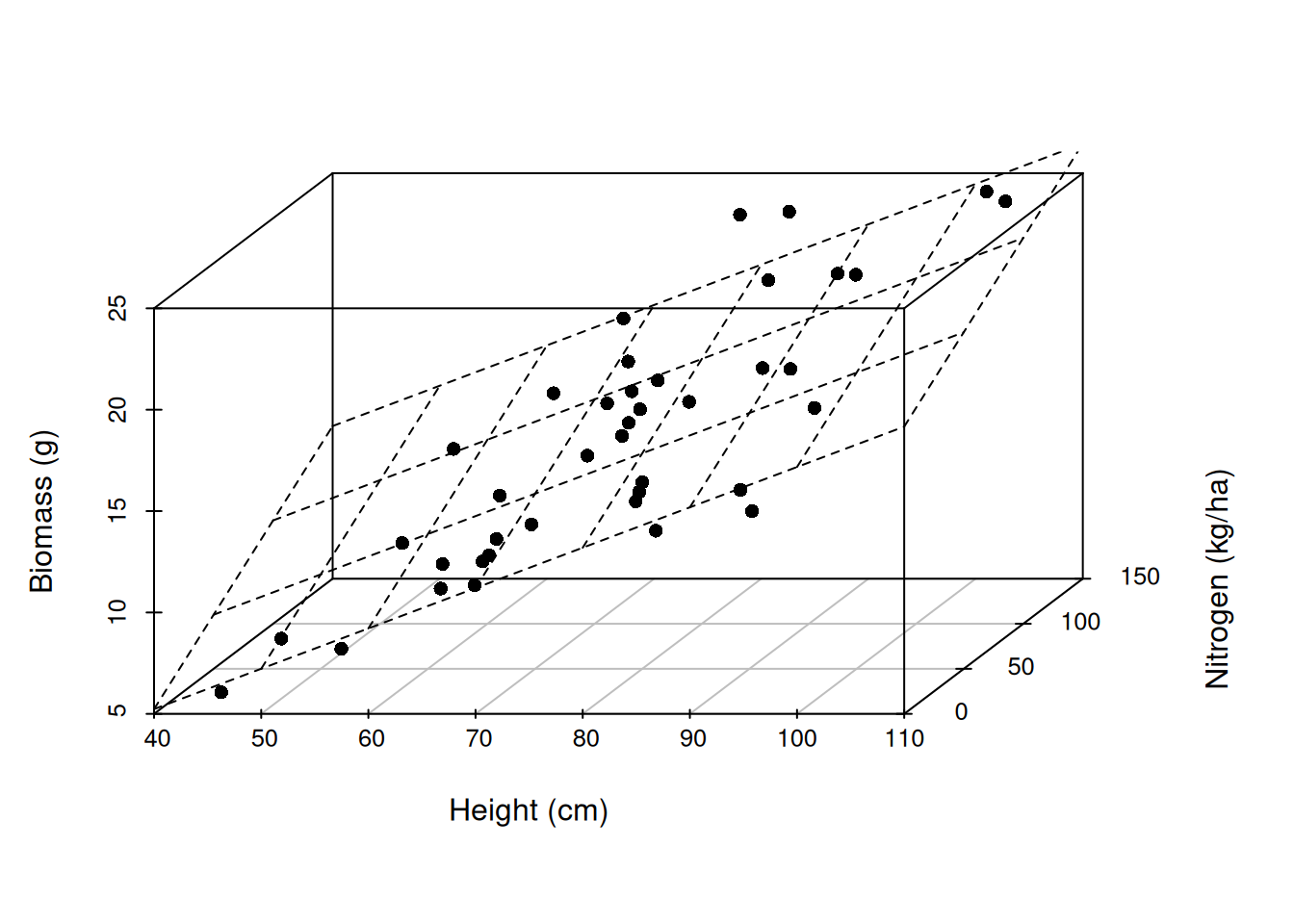

# the fitted plane (needs scatterplot3d)
library(scatterplot3d)
s3 <- scatterplot3d(wheat$height, wheat$nitrogen, wheat$biomass, pch = 16,
                    xlab = "Height (cm)", ylab = "Nitrogen (kg/ha)", zlab = "Biomass (g)")
s3$plane3d(model2)

# "holding the other fixed": the height slope at three nitrogen levels
grid <- expand.grid(height = c(50, 100), nitrogen = c(25, 75, 125))
grid$biomass <- predict(model2, grid)
grid

  height nitrogen   biomass
1     50       25  8.440803
2    100       25 18.391817
3     50       75 10.871970
4    100       75 20.822985
5     50      125 13.303137
6    100      125 23.254152

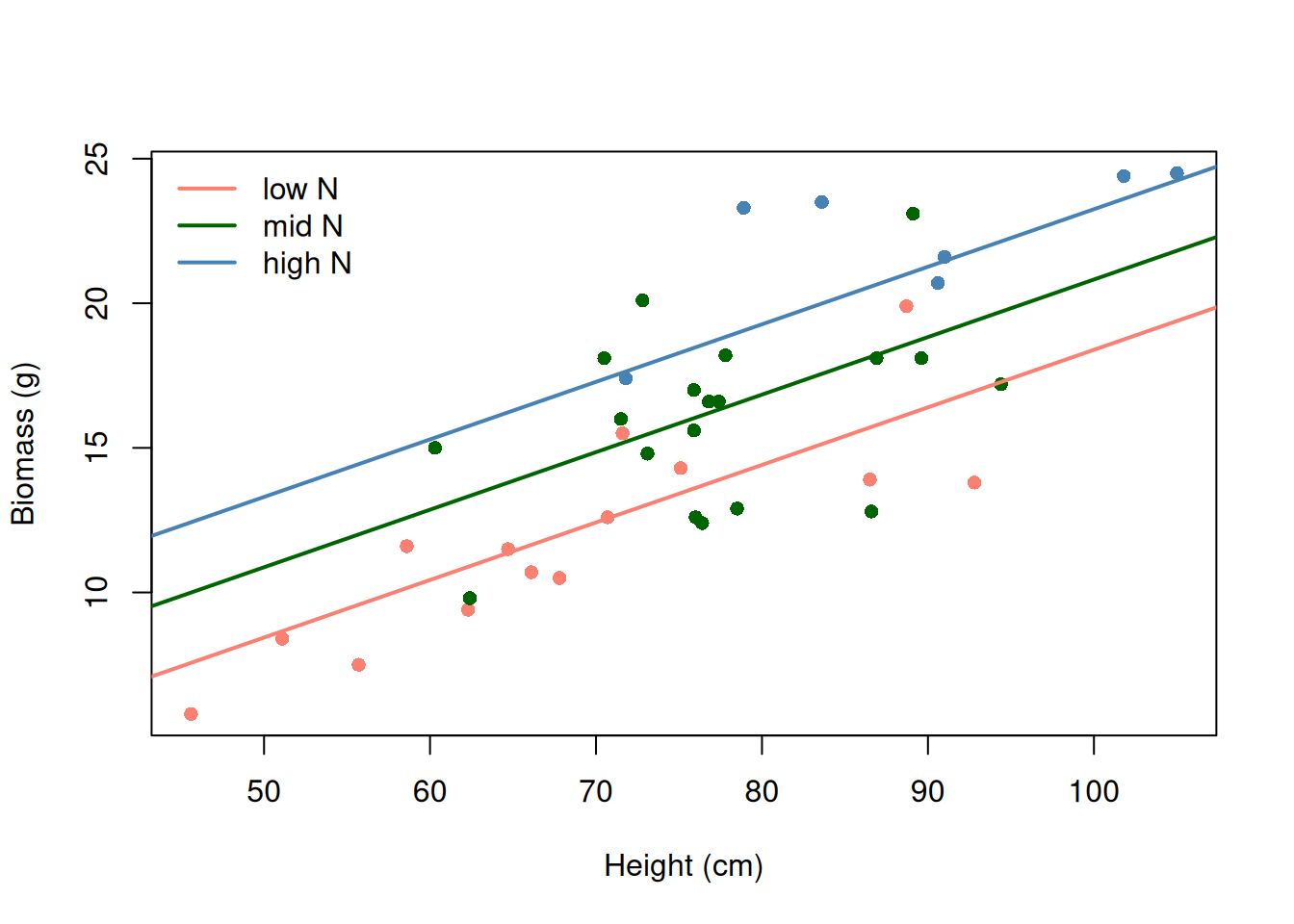

# the same slope for height at each nitrogen level: parallel lines
plot(wheat$height, wheat$biomass, xlab = "Height (cm)", ylab = "Biomass (g)",
     col = c("salmon", "darkgreen", "steelblue")[cut(wheat$nitrogen, c(-1, 50, 100, 151))], pch = 16)
for (nit in c(25, 75, 125)) {
  abline(coef(model2)[1] + coef(model2)[3] * nit, coef(model2)[2],
         col = c("salmon", "darkgreen", "steelblue")[match(nit, c(25, 75, 125))], lwd = 2)
}
legend("topleft", legend = c("low N", "mid N", "high N"), col = c("salmon", "darkgreen", "steelblue"), lwd = 2, bty = "n")

# why the height slope changed
coef(model)    # biomass ~ height

(Intercept)      height
 -5.6478330   0.2790764

coef(model2)   # biomass ~ height + nitrogen

(Intercept)      height    nitrogen
-2.72579601  0.19902030  0.04862335

cor(wheat$height, wheat$nitrogen)

[1] 0.5060092

13) R2 only goes up: adjusted R2

set.seed(206)
wheat$noise <- rnorm(40)   # a predictor that is pure noise
r2 <- function(m) summary(m)$r.squared
r2(lm(biomass ~ height, wheat))

[1] 0.594717

r2(lm(biomass ~ height + nitrogen, wheat))

[1] 0.7369115

r2(lm(biomass ~ height + nitrogen + noise, wheat))

[1] 0.7489497

adj <- function(m) summary(m)$adj.r.squared
adj(lm(biomass ~ height + nitrogen + noise, wheat))

[1] 0.7280289

13b) Does nitrogen earn its place? Nested models

anova(model, model2)   # does nitrogen improve the fit?

Analysis of Variance Table

Model 1: biomass ~ height
Model 2: biomass ~ height + nitrogen
  Res.Df    RSS Df Sum of Sq      F    Pr(>F)
1     38 361.23
2     37 234.49  1    126.74 19.998 7.112e-05 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

coef(summary(model2))["nitrogen", "t value"]^2   # = F (one term added)

[1] 19.99782

# the F-test earns its keep when several terms are added at once:
# a 3-level factor, x + I(x^2), a block of variables
anova(model2)   # sequential: height, then nitrogen

Analysis of Variance Table

Response: biomass
          Df Sum Sq Mean Sq F value    Pr(>F)
height     1 530.07  530.07  83.639 4.941e-11 ***
nitrogen   1 126.74  126.74  19.998 7.112e-05 ***
Residuals 37 234.49    6.34
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

# the other order
anova(lm(biomass ~ nitrogen + height, wheat))

Analysis of Variance Table

Response: biomass
          Df Sum Sq Mean Sq F value    Pr(>F)
nitrogen   1 456.26  456.26  71.992 3.306e-10 ***
height     1 200.55  200.55  31.645 2.020e-06 ***
Residuals 37 234.49    6.34
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

# each term given the others (= the t-tests)
drop1(model2, test = "F")

Single term deletions

Model:
biomass ~ height + nitrogen
         Df Sum of Sq    RSS    AIC F value    Pr(>F)
<none>                234.49 76.741
height    1    200.55 435.04 99.463  31.645 2.020e-06 ***
nitrogen  1    126.74 361.23 92.025  19.998 7.112e-05 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

14) The F-test with k = 2

r2 <- summary(model2)$r.squared
k <- 2; n <- 40
f <- (r2 / k) / ((1 - r2) / (n - k - 1))
f

[1] 51.81853

pf(f, k, n - k - 1, lower.tail = FALSE)

[1] 1.870191e-11

15) Interactions

# y ~ x1 * x2  is  x1 + x2 + x1:x2
model_int <- lm(biomass ~ height * nitrogen, data = wheat)
round(coef(summary(model_int)), 4)

                Estimate Std. Error t value Pr(>|t|)
(Intercept)      -2.9686     3.8008 -0.7810   0.4399
height            0.2022     0.0523  3.8688   0.0004
nitrogen          0.0532     0.0549  0.9679   0.3395
height:nitrogen  -0.0001     0.0007 -0.0844   0.9332

# height:nitrogen p = 0.93: no interaction here; keep the simpler model

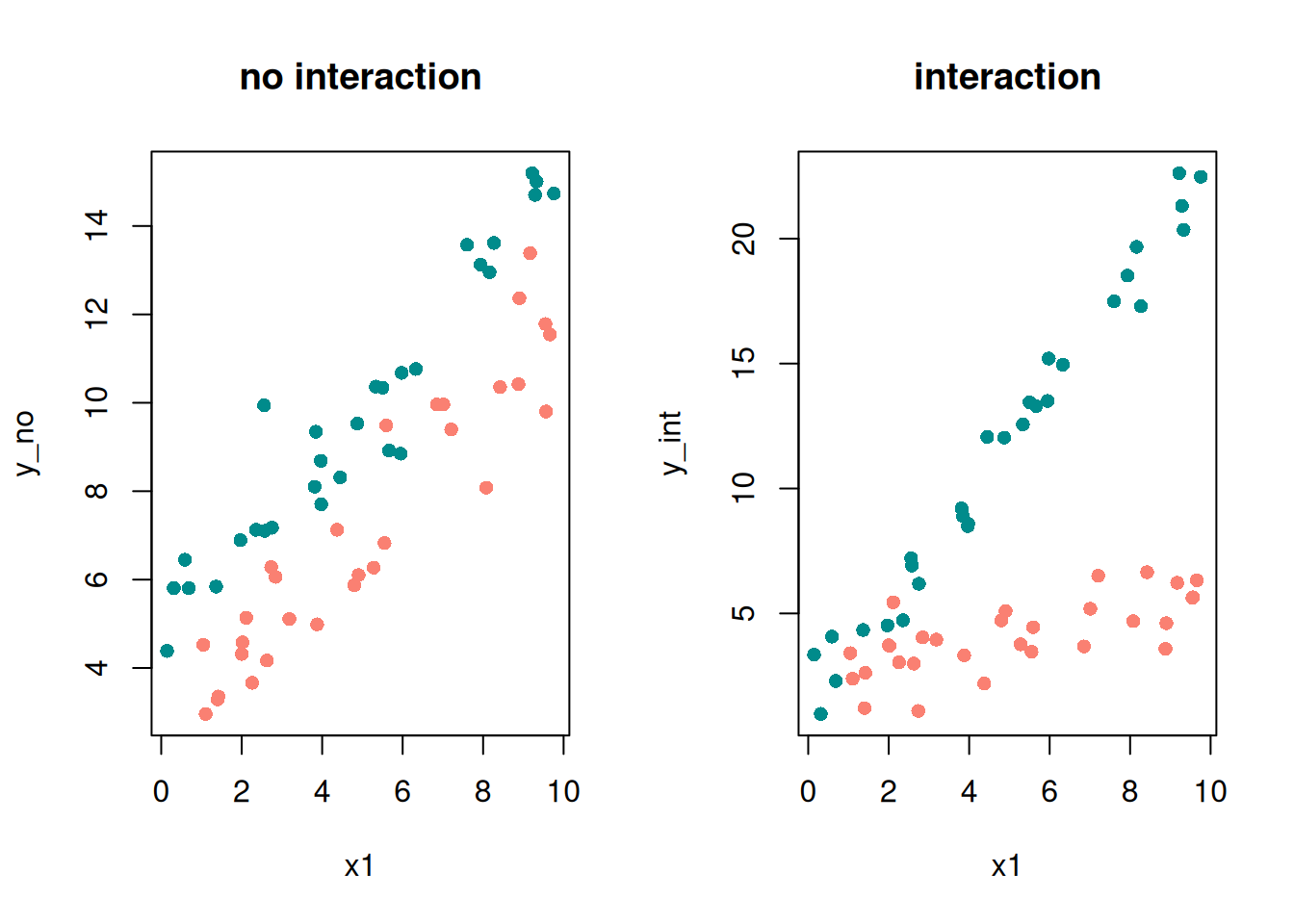

# what an interaction looks like (simulated): the slope of x1 depends on x2
set.seed(5)
x1 <- runif(60, 0, 10); x2 <- rep(c("low", "high"), each = 30)
y_no  <- 2 + 1 * x1 + ifelse(x2 == "high", 3, 0) + rnorm(60)             # parallel
y_int <- 2 + ifelse(x2 == "high", 2, 0.4) * x1 + rnorm(60)               # not parallel
par(mfrow = c(1, 2))
plot(x1, y_no, col = ifelse(x2 == "high", "darkcyan", "salmon"), pch = 16, main = "no interaction")
plot(x1, y_int, col = ifelse(x2 == "high", "darkcyan", "salmon"), pch = 16, main = "interaction")

par(mfrow = c(1, 1))
round(coef(summary(lm(y_int ~ x1 * x2))), 3)   # the x1:x2 term is the interaction

            Estimate Std. Error t value Pr(>|t|)
(Intercept)    1.142      0.358   3.193    0.002
x1             2.161      0.064  33.958    0.000
x2low          1.214      0.515   2.358    0.022
x1:x2low      -1.815      0.090 -20.244    0.000

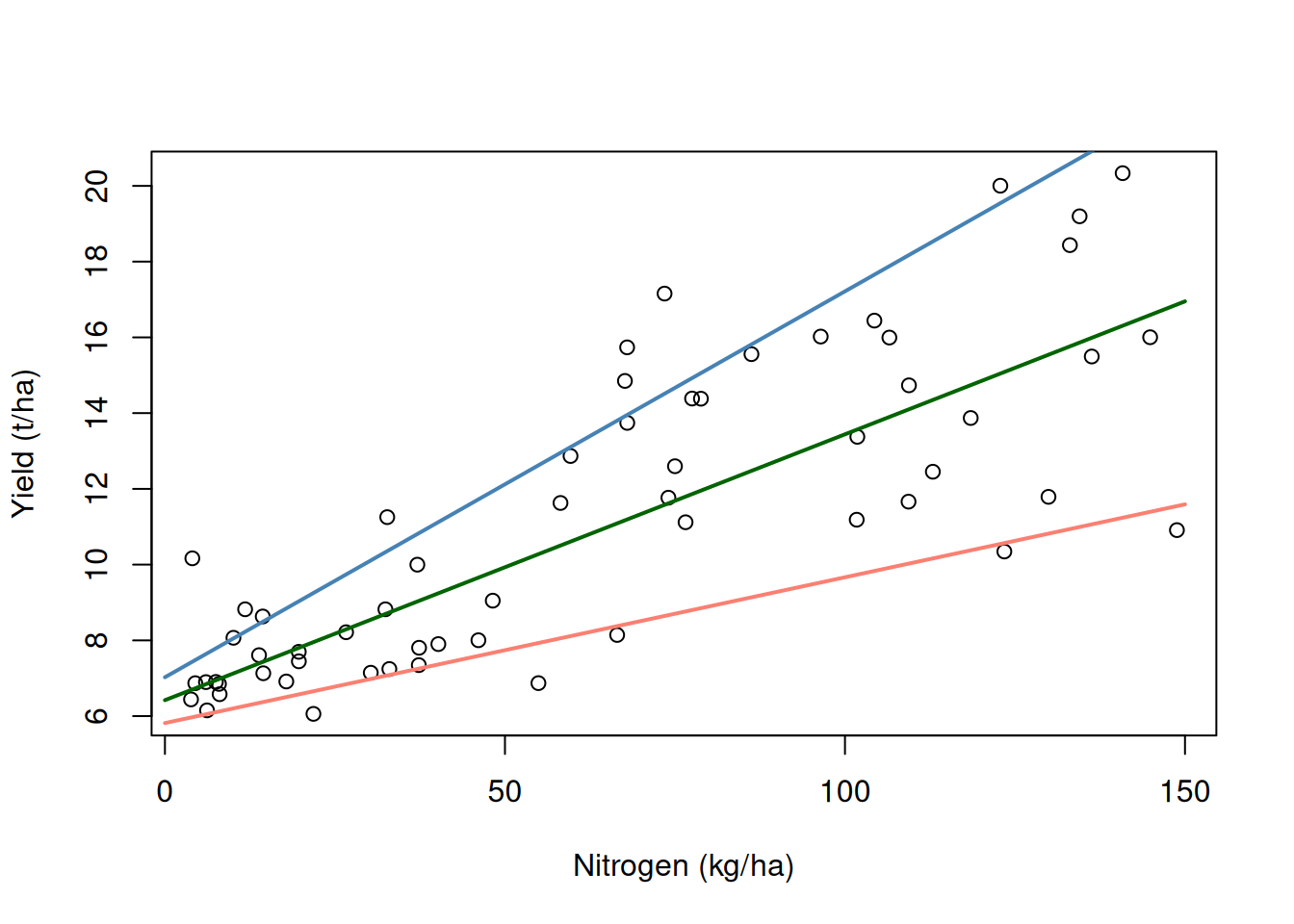

A real one: a fertilizer x irrigation trial.

set.seed(18)
trial <- data.frame(nitrogen = runif(60, 0, 150),
                    water    = runif(60, 10, 50))
trial$yield <- 5 + 0.01 * trial$nitrogen + 0.05 * trial$water +
  0.002 * trial$nitrogen * trial$water + rnorm(60, sd = 1.2)

model_nw <- lm(yield ~ nitrogen * water, data = trial)
round(coef(summary(model_nw)), 4)

               Estimate Std. Error t value Pr(>|t|)
(Intercept)      5.2123     0.6944  7.5061   0.0000
nitrogen         0.0068     0.0091  0.7506   0.4560
water            0.0403     0.0211  1.9144   0.0607
nitrogen:water   0.0021     0.0003  7.5646   0.0000

# the nitrogen slope at three water levels: b1 + b3 * water
coef(model_nw)["nitrogen"] + coef(model_nw)["nitrogen:water"] * c(15, 30, 45)

[1] 0.03849851 0.07019931 0.10190010

# always plot an interaction: predict over a grid, one line per water level
g <- expand.grid(nitrogen = c(0, 150), water = c(15, 30, 45))
g$yield <- predict(model_nw, g)
plot(trial$nitrogen, trial$yield, xlab = "Nitrogen (kg/ha)", ylab = "Yield (t/ha)")
for (w in c(15, 30, 45)) lines(g$nitrogen[g$water == w], g$yield[g$water == w], lwd = 2, col = c("salmon", "darkgreen", "steelblue")[match(w, c(15, 30, 45))])

# centring: the product term overlaps its parts
library(car)    # vif()
vif(model_nw)

      nitrogen          water nitrogen:water
      8.978014       2.850287      10.761527

trial$nitrogen_c <- trial$nitrogen - mean(trial$nitrogen)
trial$water_c    <- trial$water - mean(trial$water)
model_nwc <- lm(yield ~ nitrogen_c * water_c, data = trial)
vif(model_nwc)   # centred: the overlap is gone

        nitrogen_c            water_c nitrogen_c:water_c
          1.013733           1.001760           1.015259

# same interaction; main effects now at the mean
round(coef(model_nwc), 4)

       (Intercept)         nitrogen_c            water_c nitrogen_c:water_c
           11.1270             0.0741             0.1725             0.0021

Part E. Hidden relationships and multicollinearity

16) Case 1: two paths that cancel (a suppressor)

set.seed(1)
temperature <- rnorm(100)
insects     <- rnorm(100) - temperature   # heat: fewer
yield       <- temperature + insects + rnorm(100)

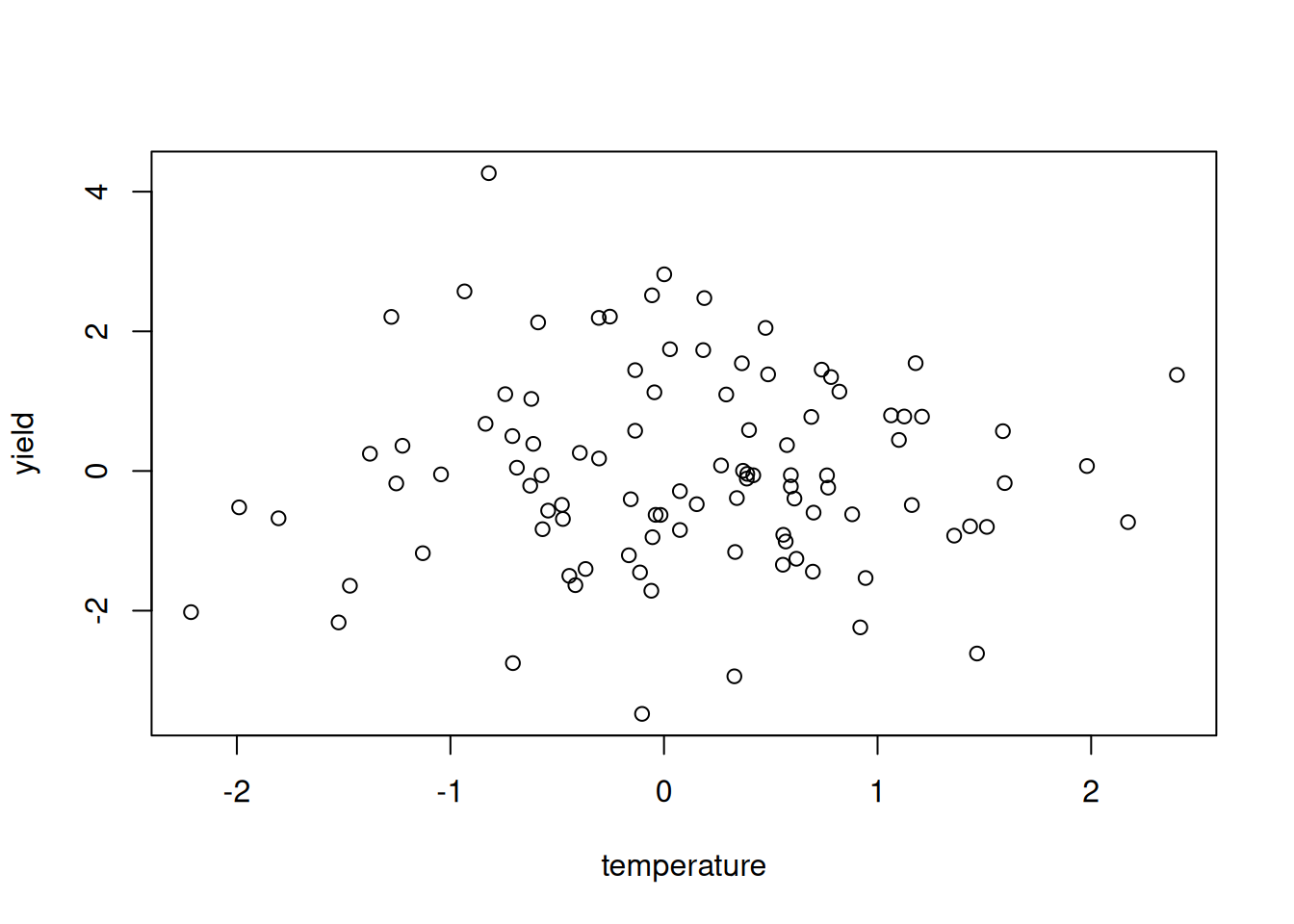

plot(temperature, yield)

round(coef(summary(lm(yield ~ temperature))), 3)            # nothing

            Estimate Std. Error t value Pr(>|t|)
(Intercept)    -0.01      0.139  -0.074    0.941
temperature     0.02      0.155   0.130    0.897

round(coef(summary(lm(yield ~ temperature + insects))), 3)  # both

            Estimate Std. Error t value Pr(>|t|)
(Intercept)    0.025      0.105   0.241     0.81
temperature    0.968      0.160   6.043     0.00
insects        0.947      0.109   8.646     0.00

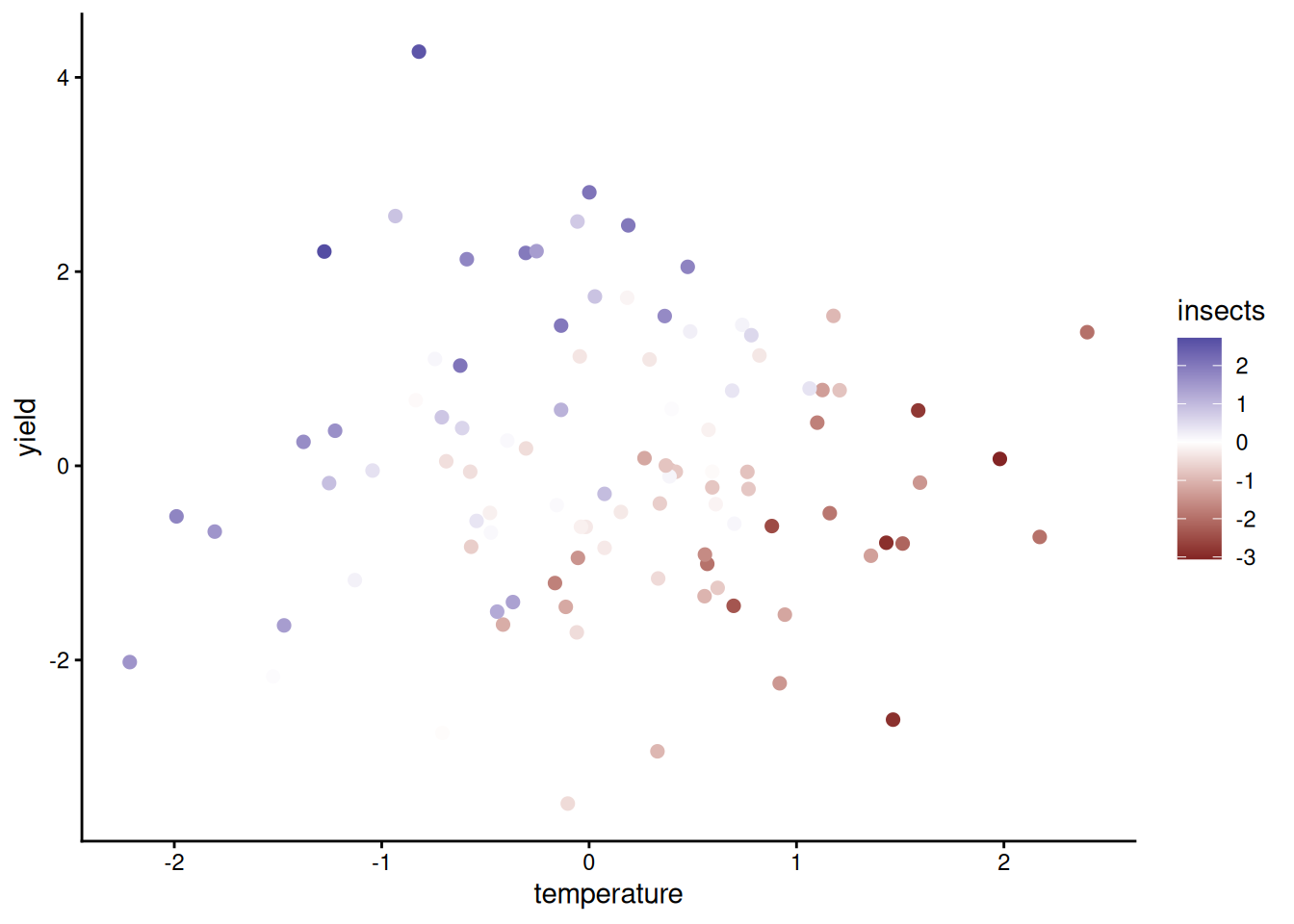

# colour points by a third variable
agri <- data.frame(temperature, insects, yield)
ggplot(agri, aes(temperature, yield, colour = insects)) +
  geom_point(size = 2) +
  scale_colour_gradient2() +
  theme_classic()

17) Case 2: a confounder

set.seed(2)
rainfall  <- rnorm(200)
nutrients <- -rainfall + rnorm(200)   # rain leaches them
yield     <- rainfall + rnorm(200)    # nutrients: no effect

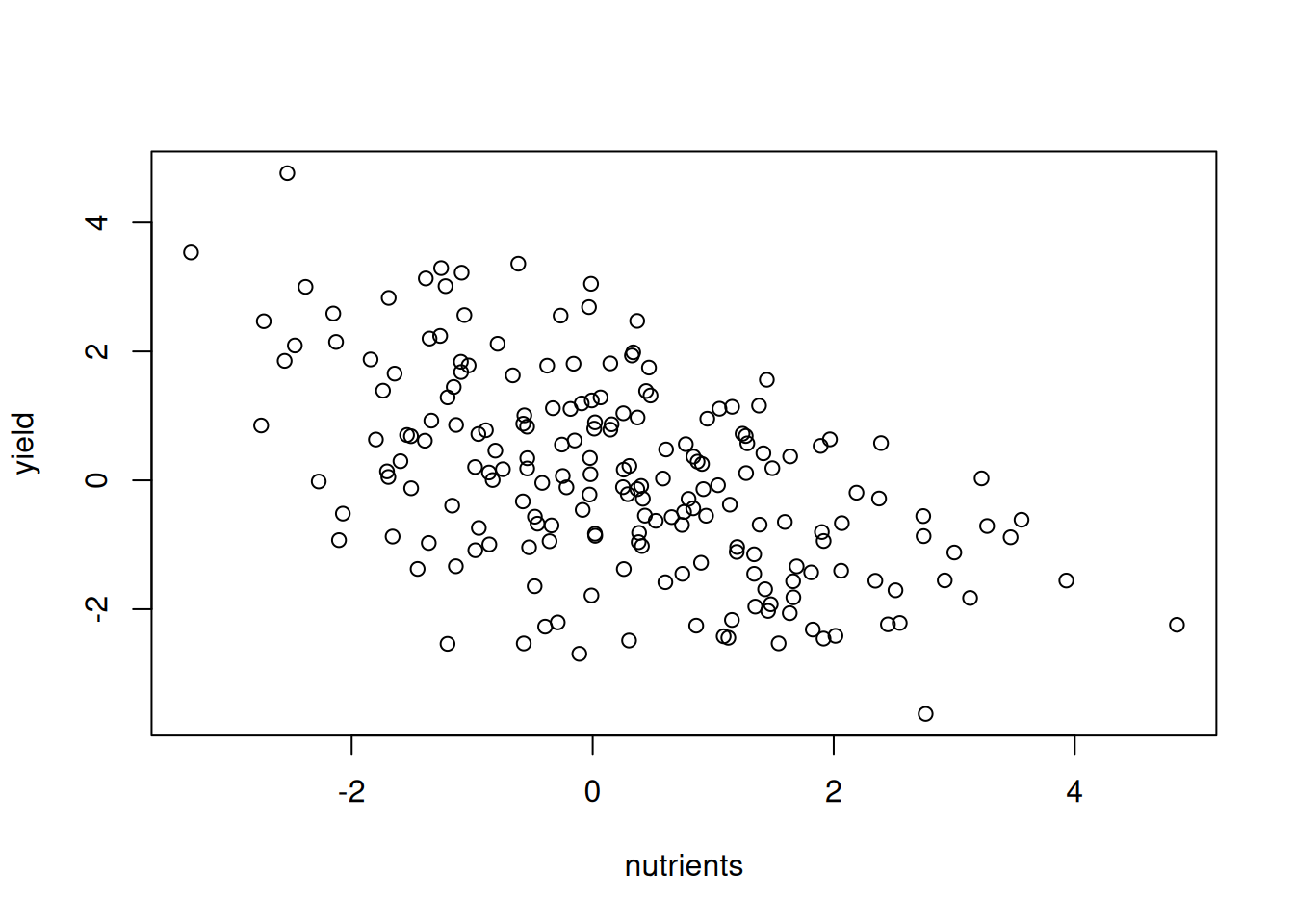

plot(nutrients, yield)

round(coef(summary(lm(yield ~ nutrients))), 3)              # "significant"

            Estimate Std. Error t value Pr(>|t|)
(Intercept)    0.177      0.093   1.915    0.057
nutrients     -0.546      0.063  -8.729    0.000

round(coef(summary(lm(yield ~ rainfall + nutrients))), 3)   # gone

            Estimate Std. Error t value Pr(>|t|)
(Intercept)    0.041      0.074   0.551    0.582
rainfall       1.105      0.100  11.088    0.000
nutrients      0.053      0.073   0.722    0.471

17b) Which variables belong in the model? A collider

x and y are independent; both cause c. Adjusting for c invents an x-y association.

set.seed(6)
x <- rnorm(300)
y <- rnorm(300)
c <- x + y + rnorm(300, sd = 0.5)    # e.g. selecting plants by overall size

round(coef(summary(lm(y ~ x))), 3)       # nothing, correctly

            Estimate Std. Error t value Pr(>|t|)
(Intercept)   -0.024      0.055  -0.431    0.667
x              0.022      0.057   0.389    0.697

round(coef(summary(lm(y ~ x + c))), 3)   # a strong negative x effect from nowhere

            Estimate Std. Error t value Pr(>|t|)
(Intercept)    0.002      0.025   0.067    0.947
x             -0.740      0.034 -21.737    0.000
c              0.746      0.022  34.023    0.000

# confounders: adjust. mediators: depends on the question. colliders: leave out.

18) Case 3: multicollinearity

set.seed(4)
temperature   <- rnorm(200)
precipitation <- rnorm(200)
microbiome    <- temperature + precipitation +
  rnorm(200, sd = 0.1)                      # almost their sum
growth        <- temperature + precipitation + rnorm(200)

model_c <- lm(growth ~ temperature + precipitation +
  microbiome)
summary(model_c)   # F huge, R2 fine, no coefficient significant

Call:
lm(formula = growth ~ temperature + precipitation + microbiome)

Residuals:
     Min       1Q   Median       3Q      Max
-2.70625 -0.63507  0.01415  0.62068  2.37091

Coefficients:
              Estimate Std. Error t value Pr(>|t|)
(Intercept)   -0.03066    0.06888  -0.445    0.657
temperature    0.44678    0.71354   0.626    0.532
precipitation  0.42278    0.71968   0.587    0.558
microbiome     0.47129    0.71114   0.663    0.508

Residual standard error: 0.9718 on 196 degrees of freedom
Multiple R-squared:  0.6268,    Adjusted R-squared:  0.6211
F-statistic: 109.7 on 3 and 196 DF,  p-value: < 2.2e-16

# variance inflation factors (car package)
library(car)
vif(model_c)

  temperature precipitation    microbiome
     100.2172      101.5519      204.0255

model_c2 <- update(model_c, . ~ . - microbiome)   # drop it
vif(model_c2)

  temperature precipitation
     1.000266      1.000266

round(coef(summary(model_c2)), 3)

              Estimate Std. Error t value Pr(>|t|)
(Intercept)     -0.032      0.069  -0.464    0.643
temperature      0.917      0.071  12.886    0.000
precipitation    0.897      0.071  12.582    0.000

# rule of thumb: VIF > 5 look closely; VIF > 10 drop or combine

# perfect collinearity: R drops the redundant term (NA)
microbiome2 <- temperature + precipitation   # their exact sum
coef(lm(growth ~ temperature + precipitation + microbiome2))

  (Intercept)   temperature precipitation   microbiome2
  -0.03187741    0.91730146    0.89737751            NA

19) Real data: bird density in forest patches

bd = bird density; grzinv = grazing (inverse); dist = distance to town; height = forest height; peri = patch perimeter; mammal = large mammals; area = patch area; leg = cover by leguminous trees (predictors standardized).

birds <- read.csv("https://greymonroe.github.io/PLS_206/data/birds.csv")[, -1]   # drop column 1
head(round(birds, 2), 4)

     bd grzinv  dist height  peri mammal  area   leg
1  9.94   0.25  0.22   0.28 -0.47  -0.01 -0.76 -0.30
2 10.25  -0.35 -1.54  -1.12  0.41   1.41  0.20  0.78
3 10.01  -2.17 -0.13  -0.65 -0.63  -1.57  0.51 -0.82
4 15.82   0.64  1.26   1.81  1.80   2.27  1.45  1.55

model_birds <- lm(bd ~ ., data = birds)   # "." = all others
summary(model_birds)

Call:
lm(formula = bd ~ ., data = birds)

Residuals:
    Min      1Q  Median      3Q     Max
-4.5500 -1.0823  0.0072  1.2688  4.5763

Coefficients:
            Estimate Std. Error t value Pr(>|t|)
(Intercept)   9.7998     0.1812  54.071   <2e-16 ***
grzinv        0.6929     6.3777   0.109    0.914
dist          6.9961   550.4282   0.013    0.990
height       -4.7656   491.4232  -0.010    0.992
peri         -4.6583   406.2665  -0.011    0.991
mammal        0.1516    20.4172   0.007    0.994
area          3.3911     5.4903   0.618    0.538
leg           5.9274   559.1732   0.011    0.992
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 1.748 on 92 degrees of freedom
Multiple R-squared:  0.825, Adjusted R-squared:  0.8117
F-statistic: 61.97 on 7 and 92 DF,  p-value: < 2.2e-16

round(vif(model_birds), 1)

    grzinv       dist     height       peri     mammal       area        leg
    1256.7 11425669.7  7898629.8  5253300.6    12131.7      939.5  8767479.7

model_birds2 <- update(model_birds, . ~ . - dist)
round(vif(model_birds2), 1)

grzinv height   peri mammal   area    leg
   1.0    1.6    1.6    1.4    1.0    1.8

round(coef(summary(model_birds2)), 3)

            Estimate Std. Error t value Pr(>|t|)
(Intercept)    9.800      0.180  54.388    0.000
grzinv         0.612      0.181   3.375    0.001
height         1.481      0.221   6.690    0.000
peri           0.505      0.220   2.299    0.024
mammal        -0.108      0.217  -0.498    0.620
area           3.321      0.182  18.214    0.000
leg           -1.180      0.253  -4.656    0.000

# the same model, two other ways
model_birds3 <- lm(bd ~ . - dist, data = birds)
model_birds4 <- lm(bd ~ grzinv + height + peri + mammal + area + leg, data = birds)

Part F. Under the hood, and reporting

20) The design matrix

head(model.matrix(model2), 4)   # a column of 1s for the intercept

  (Intercept) height nitrogen
1           1   86.9       89
2           1   71.6        6
3           1   73.1       66
4           1   75.9       70

# least squares in one line of matrix algebra: (X'X)^-1 X'y
X <- model.matrix(model2); y <- wheat$biomass
solve(t(X) %*% X) %*% t(X) %*% y

                   [,1]
(Intercept) -2.72579601
height       0.19902030
nitrogen     0.04862335

coef(model2)

(Intercept)      height    nitrogen
-2.72579601  0.19902030  0.04862335

21) Reporting: effect size in units, CI, R2, n

coef(model)[2]; confint(model)[2, ]; summary(model)$r.squared; nrow(wheat)

   height
0.2790764

    2.5 %    97.5 %
0.2034192 0.3547337

[1] 0.594717

[1] 40

# "Biomass increased with height (0.28 g per cm, 95% CI 0.20 to 0.35;
#  t38 = 7.5, p < 0.001). Height explained 59% of the variation in
#  biomass (R2 = 0.59, n = 40)."

# which predictor matters more? standardize both: slopes in SD units
model_std <- lm(scale(biomass) ~ scale(height) +
  scale(nitrogen), data = wheat)
round(coef(model_std), 2)   # slopes in SD units

    (Intercept)   scale(height) scale(nitrogen)
           0.00            0.55            0.44
